CPCI Serial Rack Single Eurocards

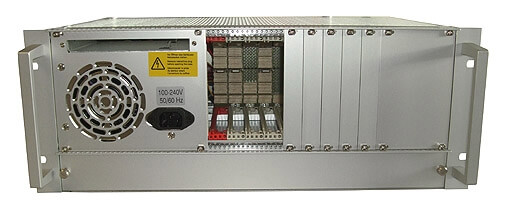

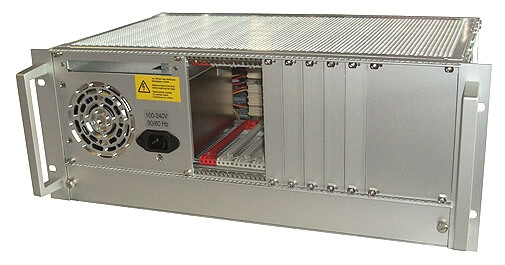

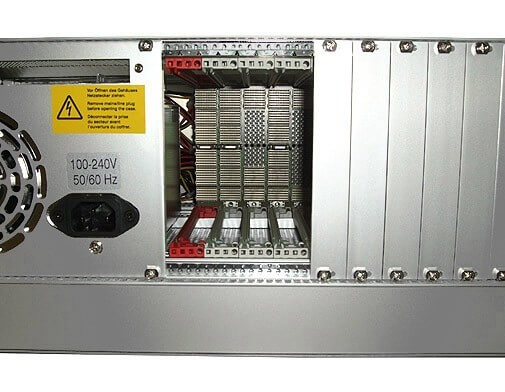

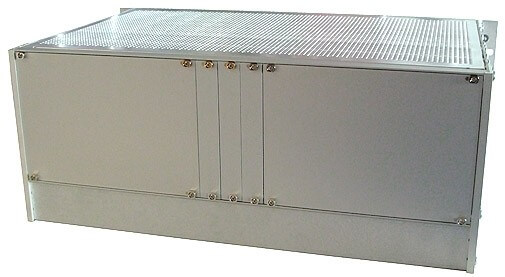

This compact 4U rack-mount enclosure is the basis for building up a CompactPCI® Serial system. It contains a 9-slot backplane with one CompactPCI® Serial system slot and eight peripheral slots. The first two peripheral slots from the left support a PCI Express® x8 link each as defined in the CompactPCI® Serial specification PICMG CPCI-S.0. The system supports a full Ethernet mesh and is designed for use with MEN CompactPCI® Serial system-slot SBCs like the G20. In addition, the system offers space for a slim-line DVD drive. A 460 W ATX wide-range power supply unit which is accessible from the front of the system is already included and wired. The system is cooled by two 12V fans installed in a fan tray at the bottom of the system. The enclosure meets EMC requirements, making it a perfect choice for embedded applications in harsh environments. Ask us for completely configured, wired and tested systems!
