CB70C - Rugged COM Express with Intel Core i7

VITA 59 RCE Module CB70C je pasivně chlazený VITA 59 Rugged COM Express type 6 modul osazený třetí generací procesoru Intel Core i7. The CB70C is a conduction-cooled VITA 59 Rugged COM Express type 6 module controlled by a third generation Intel Cor

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073 pchalupa@nowatron.cz

Poptat řešení

Základní informace Blokové schéma Specifikace Fotogalerie Ke stažení

Základní informace

Intel Core i7, 3rd generation
Quad-core 64-bit processor
Up to 16 GB DDR3 DRAM, ECC, soldered
Board Management Control
Active Management Technology
Open CL 1.1 support
9 V to 16 V extended input range
-40°C to +85°C Tcase screened, depending on processor
Conduction cooling
VITA 59 in process, compliant with COM Express Basic, type 6
PICMG COM.0 COM Express version also available

Blokové schéma

Specifikace

CPU

The following CPU types are available:
- Intel Core i7 (3rd gen)
- Intel Core i5 (3rd gen)
- Intel Core i3 (3rd gen)
- Intel Celeron (2nd or 3rd gen)
Chipset
- Intel Core i7-3612QE (QM77 Platform Controller Hub (PCH))

Memory

System Memory
- Soldered DDR3
- 2 GB, 4 GB, 8 GB or 16 GB
Boot Flash
- 16 MB

Graphics

Integrated in processor and chipset
Maximum resolution: 2560 x 1600 pixels

Onboard Interfaces

Available via COM Express connectors
Video
- One x16 link (PCI Express graphics)
- One VGA
- Three DDI ports for DP, HDMI, DVI, SDVO
- One LVDS dual channel up to 48-bit RGB
Audio
- HD audio
Serial ATA (SATA)
- Two ports with SATA Revision 2.x support; transfer rates up to 300 MB/s (3 Gbit/s)
- Two ports with SATA Revision 3.x support; transfer rates up to 600 MB/s (6 Gbit/s)
- RAID level 0/1/5/10 support
USB
- Four USB 3.0 host ports, xHCI implementation, data rate up to 5 Gbit/s
- Four USB 2.0 host ports, EHCI implementation, data rates up to 480 Mbit/s
Ethernet
- One 10/100/1000Base-T Ethernet channel
- Three LED signals for LAN link, activity status and connection speed
PCI Express
- Seven x1 links (up to 500 MB/s in each direction), PCIe 2.x (5 Gbit/s per lane)
GPIO
- 8 lines
SMBus interface
LPC
SPI
Speaker

Supervision and Control

Input voltage supervision
Power sequencing
Board monitoring
Watchdog
Accessible via SMBus
Real-time clock, with supercapacitor or battery backup on the carrier board

Computer-On-Module Standard

CB70C: VITA 59 RCE: Rugged COM Express in process
- With conduction cooling cover and frame
- Rugged COM Express Basic, Module Pin-out Type 6
CB70: PICMG COM.0 COM Express Module Base Specification
- Without conduction cooling wings, without cover and frame
- COM Express Basic (135 mm x 105 mm), Module Pin-out Type 6

Electrical Specifications

Supply voltage
- +12V (9 to 16 V)
- +5V (-5%/+5%) standby voltage
Power consumption
- 48 W typ./ 70 W max.
- 1.1 W in standby operation

Mechanical Specifications

Dimensions:
- 135 mm x 105 mm x 18 mm (height) (conforming to VITA 59 RCE Basic format), PCB mounted between a cover and a frame (model 15CB70C00/15CB70C01)
- 125 mm x 95 mm (conforming to PICMG COM.0 COM Express Basic format) (model 15CB70-00)
Weight:
- 460 g (model 15CB70C00/15CB70C01)
- 90 g (model 15CB70-00)

Environmental Specifications

Temperature range (operation): -40..+85°C Tcase (Rugged COM Express cover/frame) (screened)
Temperature range (storage): -40..+85°C
Cooling Concept
- Conduction-cooled versions according to VITA 59 RCE: Rugged COM Express in process
- Air-cooled versions according to PICMG COM.0 COM Express standard
Relative humidity (operation): max. 95% non-condensing
Relative humidity (storage): max. 95% non-condensing
Altitude: -300 m to +3000 m
Shock: 50 m/s², 30 ms (EN 61373)
Vibration (function): 1 m/s², 5 Hz - 150 Hz (EN 61373)
Vibration (lifetime): 7.9 m/s², 5 Hz - 150 Hz (EN 61373)
Conformal coating on request

Reliability

MTBF

415 714 h @ 40°C according to IEC/TR 62380 (RDF 2000)

Safety

Flammability

UL 94V-0

EMC

EMC behavior depends on the system and housing surrounding the COM Express module.
The Rugged COM Express module in its cover and frame supports the system to meet the requirements of
- EN 55022 (radio disturbance)
- IEC 61000-4-2 (ESD)
- IEC 61000-4-3 (electromagnetic field immunity)
- IEC 61000-4-4 (burst)
- IEC 61000-4-5 (surge)
- IEC 61000-4-6 (conducted disturbances)

Software Support

Windows
Linux

BIOS

InsydeH2O UEFI Framework

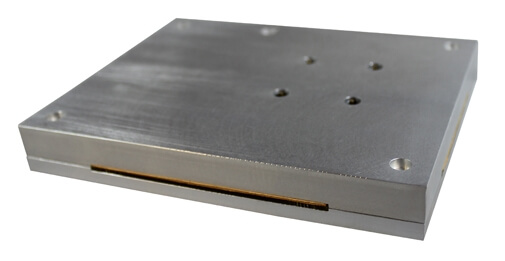

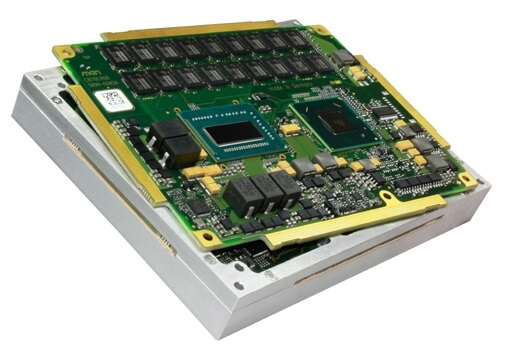

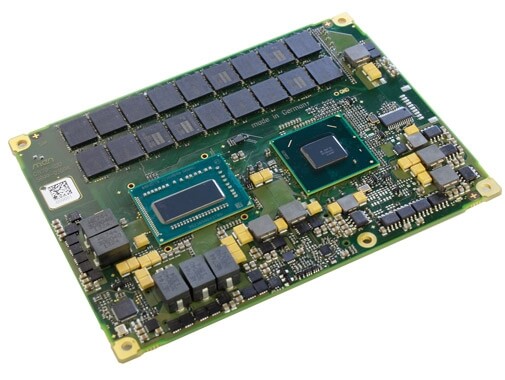

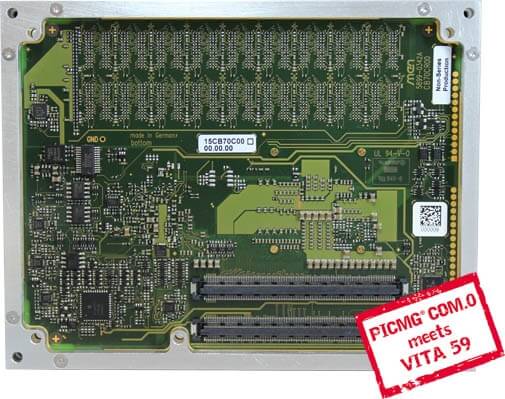

Fotogalerie

Ke stažení

Datasheet MEN CB70C
