BL70W

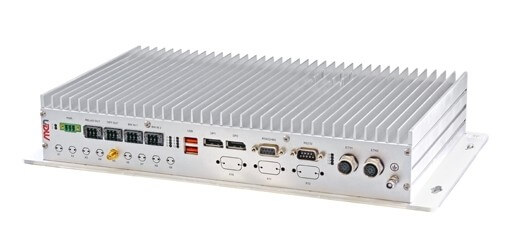

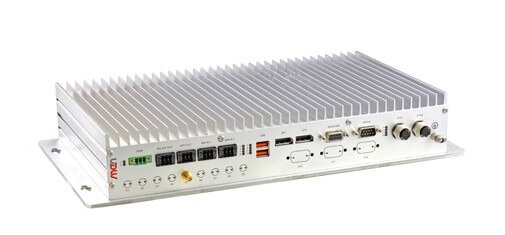

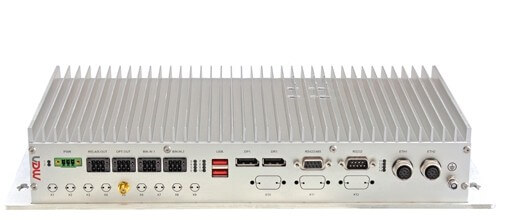

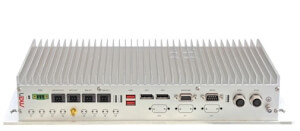

BL70W - Rugged Box PC for Wireless Applications Intel Core i7, 3rd Generation The Intel-based BL70W is a rugged, fanless embedded box PC that can be used as a wireless in-vehicle computer or for any other embedded transportation application.

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

Main Features

  • Intel Core i7, 3rd generation
  • Up to 16 GB DDR3 DRAM soldered, ECC
  • 4 PCI Express Mini Card slots each with dual SIM for GSM (2G), UMTS (3G), LTE (4G), WLAN, 9 antenna cut-outs
  • GPS/GLONASS interface
  • 2 Gigabit Ethernet, 2 USB 2.0, 2 DisplayPorts
  • 1 RS232, 1 RS422/485
  • 3 flexible slots for IBIS, RS232, RS422/485 or CAN
  • 24 VDC and 36 VDC nom. (10 to 50.4 V) class S2 power supply, incl. ignition
  • -40 to +85°C operating temperature, fanless
  • Conformal coating of internal components
  • Compliant to EN 50155 (railways)
  • Compliant to ISO 7637-2 (E-mark for automotive)

BL70W - Rugged Box PC for Wireless Applications EN50155

Specifikace

CPU
  • Intel Core i7-3517UE
    • 1.7 GHz processor core frequency
    • 2.8 GHz maximum turbo frequency
  • Chipset
    • QM77 Platform Controller Hub (PCH)
Memory
  • 4 MB last level cache integrated in i7 processor
  • 4 GB SDRAM system memory
    • Soldered
    • DDR3 with ECC support
    • Up to 1066 MHz memory bus frequency
Mass Storage
  • One microSD card slot
    • Via USB 2.0
  • One mSATA slot
    • SATA Revision 2.x support
    • Transfer rates up to 300 MB/s (3 Gbit/s)
  • Serial ATA (SATA)
    • One port for 2.5" hard-disk/solid-state drive mounted within the unit's housing
    • SATA Revision 2.x support
    • Transfer rates up to 300 MB/s (3 Gbit/s)
Graphics
  • Integrated in processor and chipset
  • Maximum resolution: 2560 x 1600 pixels
  • Via two DisplayPort interfaces

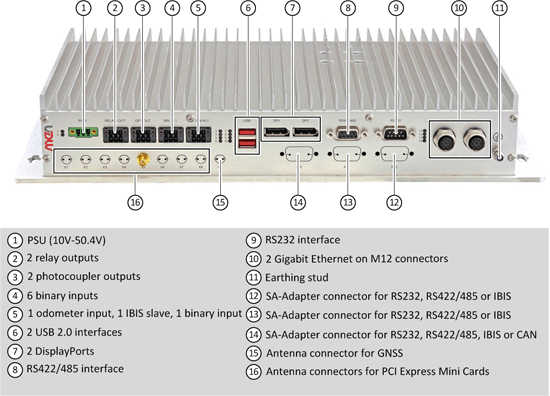

Front I/O
  • 2 DisplayPort 1.1a interfaces
    • AUX channels and hot plug detection
  • 2 Gigabit Ethernet
    • Via M12 connectors
    • Electrically isolated
  • 2 USB 2.0
    • Via Series A connector
  • 7 general purpose inputs
    • Input voltage range from 0 V up to 154 V independent of the power supply input voltage
    • Input signal frequency max. 10 Hz
  • 2 relay outputs
    • Max. switching current 0..30 V: 2 A
    • Max. switching current 30..72 V: 0.9 A
    • Max. switching current 72..154 V: 0.3 A
    • Max. switching voltage: 154 V
    • Max. switching frequency: 1 Hz
    • Minimum life time @ 1A, 30V, 20 cpm: 100.000
    • Electrically isolated
  • 2 photocouplers (shutters)
    • Max. switching voltage: 154 V
    • Max. current: 120 mA (switching and continuous)
  • 1 odometer input
    • For counting odometer pulses of a maximum frequency of 2 kHz
  • 1 IBIS slave interface
    • Baud rate up to 19.2 kBaud
    • Electrically isolated
  • GNSS interface
    • Frequency band: GPS (L1), Glonass (L1, FDMA), Galileo (E1)
    • Standards: NMEA, RTCM 104
    • 32-channel GNSS architecture
    • Accuracy: 1.5 m
    • A-GPS
    • Time-To-First-Fix - cold start: lower than 35 s
    • Time-To-First-Fix - warm start / aided start: 1s
    • Odometer input for GNSS receiver
  • RS232
    • D-Sub connector at front panel
    • Data rates up to 115 200 bit/s
    • 60-byte transmit/receive buffer
    • Handshake lines: RTS, CTS
    • Electrically isolated
  • RS422/485
    • D-Sub connector at front panel
    • Full or half duplex
    • Electrically isolated
  • 2 SA-Adapter slots for legacy serial I/O
    • For RS232, RS422/485 or IBIS master
  • 1 SA-Adapter slot for RS232, RS422/485, IBIS or CAN
  • 14 status LEDs
    • 4 for Ethernet link and activity status
    • 2 for general board status
    • 8 user LEDs
4 PCI Express Mini Card slots
  • For functions such as
    • Mobile service standards: GSM (2G), UMTS (3G), LTE (4G) and derivates
    • Wireless communication: WLAN / WiFi IEEE 802.11 and derivates
  • 2 SIM card slots for each PCI Express Mini Card
  • PCI Express and USB interface
Real-Time Clock
Buffered by Gold Cap for up to 72 h
Electrical Specifications
  • Supply voltage:
    • 24V and 36V nominal input voltage according to EN50155
    • 24V nominal input voltage according to ISO 7637-2 (E-mark) requirements
    • 10 to 50.4 V input voltage range
    • EN 50155 power interruption class S2
  • Power consumption: 24 W typ.
Mechanical Specifications
  • Dimensions: Height 66 mm x Width 390 mm x Length 215 mm
  • Weight: approx. 3 kg
Environmental Specifications
  • Temperature range (operation):
    • -40°C to 70°C (screened), with up to 85°C for 10 minutes according to class Tx (EN 50155)
    • Fanless operation
  • Temperature range (storage): -40..+85°C
  • Relative humidity (operation): max. 95% non-condensing
  • Relative humidity (storage): max. 95% non-condensing
  • Altitude: -300 m to +3,000 m
  • Shock: 50 m/s², 30 ms (EN 61373)
  • Vibration (function): 1 m/s², 5 Hz - 150 Hz (EN 61373)
  • Vibration (lifetime): 7.9 m/s², 5 Hz - 150 Hz (EN 61373)
  • Conformal coating of internal components
  • Compliant to protection class IP43 according to DIN60529 when mounted with connectors down
MTBF
198 000 h @ 40°C according to IEC/TR 62380 (RDF 2000)
Safety
  • Flammability
    • UL 94V-0
  • Fire Protection
    • EN 45545-2
  • Electrical Safety
    • EN 50153
    • EN 50155
EMC Conformity (Automotive)
  • ECE R10 (E-mark)
  • ISO 10605 (ESD)
EMC Conformity (Railway)
EN 50121-3-2
BIOS
InsydeH2O UEFI Framework
Software Support
