BC50R

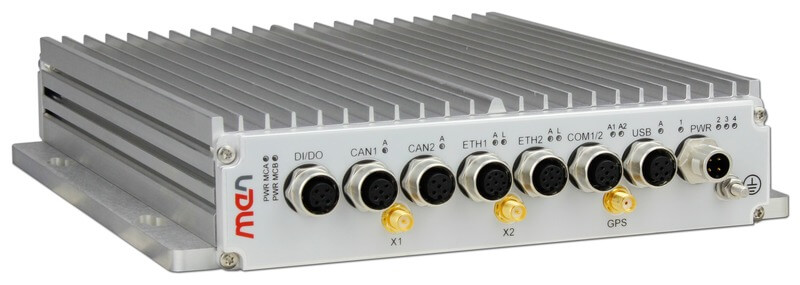

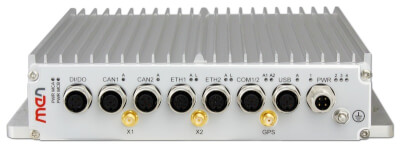

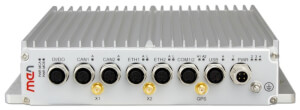

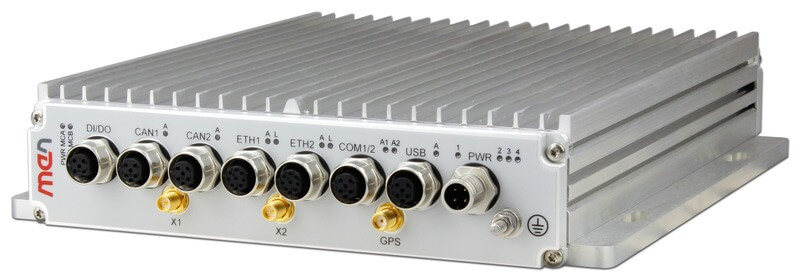

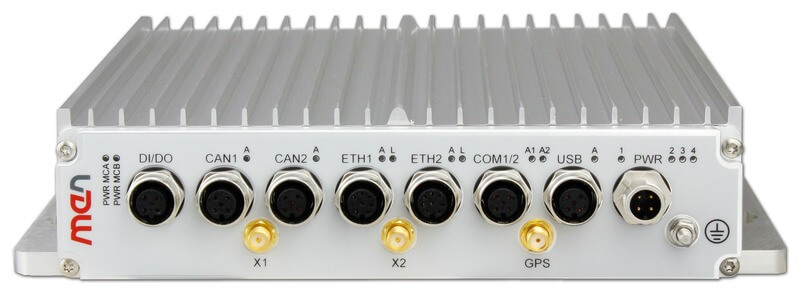

BC50R - IP65 Box PC for In-Vehicle Applications The BC50R is a maintenance-free box computer for data acquisition applications in rugged environments in vehicles, e.g. in trains, commercial vehicles, mobile machines or ships. All interfaces are implem

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • AMD Embedded G-Series APU
  • IP65-protected housing
  • Ethernet, USB 2.0, CAN, Serial I/O at front
  • WLAN, GSM (2G), UMTS (3G), LTE (4G) via 2 PCI Express Mini Card slots
  • GPS or GLONASS onboard
  • 24 VDC and 36 VDC nom. (10 to 50.4 V) class S2 power supply, incl. ignition
  • -40 to +85°C operating temperature, fanless
  • Compliant to EN 50155 (railways)
  • Compliant to ISO 7637-2 (E-mark for automotive)
  • Compliant to EN 60945 (ship)

Fotogalerie
