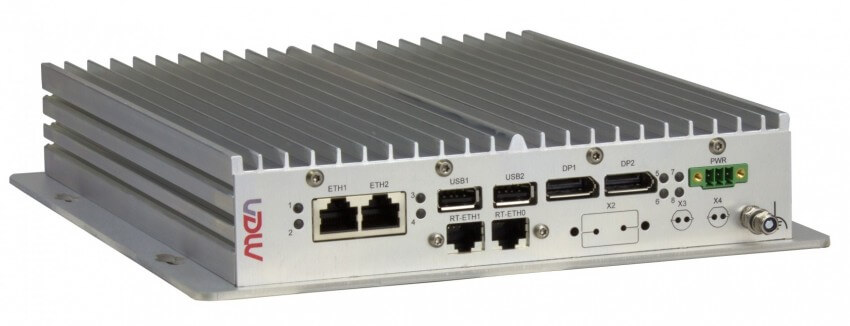

MEN BC50F - Box PC for Real-Time Ethernet Fieldbus Applications AMD Embedded G-Series The BC50F is a rugged, fanless, maintenance-free, conduction-cooled industrial box PC based on the AMD Embedded G-Series line of APUs (Accelerated Processing Units)

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • AMD Embedded G-Series Dual-Core APU
  • 2 Real-Time Ethernet (e.g. PROFINET, EtherCAT)
  • 2 Gigabit Ethernet
  • 2 USB 2.0
  • 2 DisplayPort, full HD with each display
  • 1 Slot for RS232, RS485, RS422, CAN, GPS, IBIS
  • 24 VDC nom. (16 to 36 V)
  • 0 to +60°C operating temperature, fanless

Specifikace

Technical Data

CPU
AMD Embedded G-Series T48N
  • Dual-Core
  • 1.4 GHz processor core frequency
  • 1066 MT/s DDR3 Speed
  • Accelerated Processing Unit (APU), also includes GPU (see Graphics)
Controller Hub
AMD A55E
Memory
  • 64 KB L1 and 512 KB L2 cache
  • 2 GB DDR3 SDRAM system memory
    • Soldered
Mass Storage
  • One SD card slot
    • Via USB
  • One mSATA slot
    • SATA Revision 2.x support
    • Transfer rates up to 300 MB/s (3 Gbit/s)
Graphics
  • AMD Radeon HD 6310
    • Dual independent display support
    • Dual DisplayPort
    • Maximum resolution: 2560x1600
    • Embedded in T48N APU
  • 3D Graphics Acceleration
    • Full DirectX 11 support, including full speed 32-bit floating point per component operations
    • Shader Model 5
    • OpenCL 1.1 support
    • OpenGL 4.0 support
  • Motion Video Acceleration
    • Dedicated hardware (UVD 3) for H.264, VC-1 and MPEG2 decoding
    • HD HQV and SD HQV support: noise removal, detail enhancement, color enhancement, cadence detection, sharpness, and advanced de-interlacing
    • Super up-conversion for SD to HD resolutions
Front I/O
  • 2 DisplayPort 1.1a interfaces
    • AUX channels and hot plug detection
  • 2 Gigabit Ethernet
    • Via RJ45 connectors
  • 2 Real-Time Ethernet via Hilscher CIFX90E PCI Express Mini Card
    • Via RJ45 connectors
  • 2 USB 2.0
    • Via Series A connector
  • 1 SA-Adapter slot for serial I/O
    • RS232, RS485, RS422, IBIS or GPS possible on both slots
    • SGPIO switchable by software
    • CAN bus on request
  • 12 LEDs
    • 4 for Real-Time Ethernet link and activity status
    • 4 for Ethernet link and activity status
    • 2 user LEDs
    • 1 status LED
    • 1 power OK LED
1 PCI Express Mini Card slot
With Hilscher Real-Time Ethernet Mini PCI Express Interface
  • EtherCAT Master, EtherCAT Slave
  • EtherNet/IP Scanner (Master), EtherNet/IP Adapter (Slave)
  • Open Modbus/TCP
  • POWERLINK Controlled Node/Slave
  • PROFINET IO-Controller (Master), PROFINET IO-Device (Slave)
  • sercos Master, sercos Slave
  • VARAN Client (Slave)
Real-Time Clock
Buffered by Gold Cap for 12 h
Electrical Specifications
  • Supply voltage:
    • 24 VDC nom. (16 to 36 V)
  • Power consumption: up to 35 W (with PCI Express Mini Card)
Mechanical Specifications
  • Dimensions: approx. 250 mm x 220 mm x 44.1 mm
  • Weight: 1.8 kg
  • International Protection Rating: IP20
Environmental Specifications
  • Temperature range (operation):
    • 0°C to 60°C
    • Fanless operation
  • Temperature range (storage): -20..+70°C
  • Relative humidity (operation): max. 95% non-condensing
  • Relative humidity (storage): max. 95% non-condensing
  • Altitude: -300 m to +3,000 m
  • Shock: 50 m/s², 30 ms
  • Vibration (function): 1 m/s², 5 Hz - 150 Hz
  • Vibration (lifetime): 7.9 m/s², 5 Hz - 150 Hz
  • Conformal coating of internal components on request
MTBF
262 000 h @ 40°C according to IEC/TR 62380 (RDF 2000)
Safety
  • Flammability
    • UL 94V-0
  • Fire Protection
    • EN 45545-2 (Railway)
    • ECE-R118 (Automotive)
EMC
Conforming to EN 55022 (radio disturbance)
BIOS
InsydeH2O UEFI Framework
Software Support

Options

APU
  • AMD T48N, 1.4 GHz Dual Core, 18W, AMD Radeon HD 6310
  • AMD T56N, 1.65 GHz Dual Core, 18W, AMD Radeon HD 6320 (on request)
  • AMD T56E, 1.65 GHz Dual Core, 18W, AMD Radeon HD 6250 (on request)
  • AMD T48E, 1.4 GHz Dual Core, 18W, AMD Radeon HD 6250 (on request)
  • AMD T40N, 1.0 GHz Dual Core, 9W, AMD Radeon HD 6290 (on request)
  • AMD T40E, 1.0 GHz Dual Core, 6.4W, AMD Radeon HD 6250 (on request)
  • AMD T52R, 1.5 GHz Single Core, 18W, AMD Radeon HD 6310 (on request)
  • AMD T44R, 1.2 GHz Single Core, 9W, AMD Radeon HD 6250 (on request)
  • AMD T40R, 1.0 GHz Single Core, 5.5W, AMD Radeon HD 6250 (on request)
  • AMD T16R, 615 MHz Single Core, 4.5W, AMD Radeon HD 6250 (on request)
  • AMD T48L, 1.4 GHz Dual Core, 18W (on request)
  • AMD T30L, 1.4 GHz Single Core, 18W (on request)
  • AMD T24L, 1000 MHz Single Core, 5W (on request)
Memory
  • 2 GB DDR3 SDRAM system memory
  • 4 GB DDR3 SDRAM system memory (on request)
Graphics
Maximum resolution depending on GPU
  • 2560x1600 (all DisplayPort interfaces) with Radeon HD 6310 and 6320
  • 1920x1200 (all DisplayPort interfaces) with Radeon HD 6250 and 6290 (on request)
Miscellaneous
Real-time clock
  • 12 h buffer time
  • 72 h buffer time (on request)
Other Options
