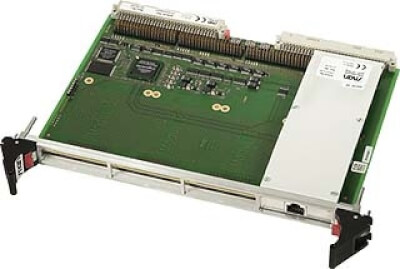

A203N VME64 M-Module Carrier Board

A203N - 6U VME64 M-Module™ Carrier Board - 4 M-Module™ slots - 1 VME64 slave slot - 7-level interrupter - -40 to +85°C with qualified components

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073


The A203N is an M-Module™ carrier board for universal I/O on the VMEbus, allowing high flexibility in applications such as process and motion control, measurement and instrumentation, communication or special-purpose tasks. The M-Modules™ are screwed tightly on the carrier board, and the board needs only one slot on the VMEbus. The A203N is a VME64 slave card and supports four D16/D32 M-Modules™ with the signals either at the front or via rear I/O. An interrupt controller handles the M-Modules™ individually. For rugged requirements the A203N is equipped with a stiffener front panel, allows a standard -40 to +85°C operation temperature and is prepared for conformal coating. Additionally, the A203N is prepared for DMA transfer support.
