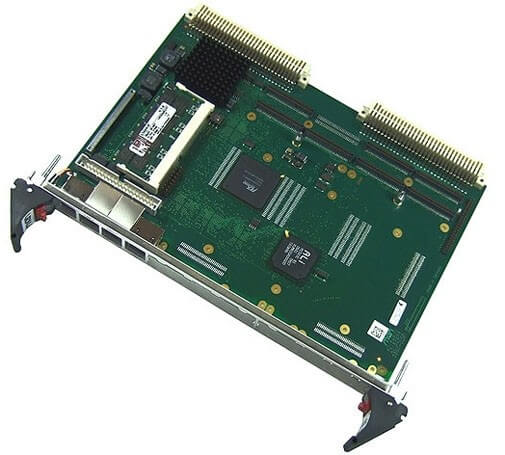

A15C VME64 MPC8245 CPU Board (PMC Modules)

A15C - 6U VME64 MPC8245 CPU Board (PMC Modules) - PowerPC® MPC8245 / 400 MHz - 64-bit VMEbus master and slave - Up to 256 MB DRAM, CompactFlash® - Graphics via PMC - Dual 10/100Mbit Fast Ethernet - 4 COMs, USB, IDE, keyboard/mouse - 2 PMC slots - MENMON

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Popis

The A15C is an advanced PowerPC® based single-board computer for embedded applications. It features full VME64 support and it can be used as a master or a slave in a VMEbus environment. The A15C provides 1 MB local dual-ported SRAM for slave access and communication between the local CPU and another VMEbus master. The CPU card comes with the MPC8245 PowerPC® with 400 MHz clock frequency and local 32-bit/33-MHz PCI data bus. It is a complete state-of-the-art SBC offering DRAM, Flash and CompactFlash® memory, dual Fast Ethernet, four COMs, USB, IDE and keyboard/mouse interfaces as well as an optional on-board hard disk. In addition, the A15C can be equipped with PMC mezzanine cards supporting both front I/O and rear I/O. PMCs may particularly be used for intelligent telecom I/O. The modular combination of I/O functionality on a single-board computer allows to build up tailored control systems which appear as customized solutions based on standard components. Depending on the kind of I/O requirements, further standard versions of A15 are availabe for other mezzanine standards. The A15 comes with MENMON™ support. This firmware/BIOS can be used for bootstrapping operating systems (from disk, Flash or network), for hardware testing, or for debugging applications without running any operating system. The A15 single-board computer is partly compatible with the MVME2100 board by Motorola.
