MDU-268 v2

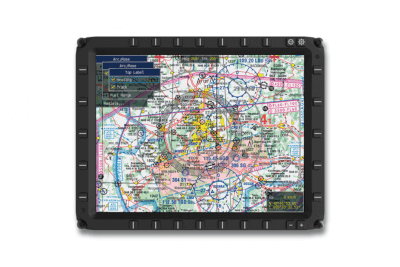

10.4” (6” x 8”) Mission Display Unit for Harsh Environments
Základní informace
- Very wide viewing angles – ideal for cross-cockpit viewability
- NVIS Class B compatibility
- Safety critical multi-touch touchscreen
- 1 DVI-D video input, up to DAL C
- 1 HD-SDI input
- 6 analog inputs, can be combined into 2 STANAG 3350B class B inputs
Product description
Next to a DVI input and analog video inputs (Composite, RGB, STANAG) the MDU-268 v2 also has a HD-SDI (SMPTE-292M) digital video input. The MDU-268v2 is equipped with a multi-touch PCAP based implementation in order to support the latest market demands concerning intuitive man-machine interfaces. Equipped with a high-quality sunlight-readable AMLCD and a high-efficiency LED backlight, the MDU-268v2 delivers excellent optical performance. This includes high brightness and contrast values, as well as wide viewing angles of 80° in all directions. It allows the same unit to be used in portrait as well as landscape modes.
Compatible with thermal cameras, daylight video cameras, moving maps, computers and radar, the MDU-268v2 Display Unit offers a dedicated imaging solution, wherever your mission takes you. The unit is DO-178B and DO-254 DAL C qualified for the DVI input and all HMI controls.
Specifikace
ELECTRO-OPTICAL
| Panel type | Active matrix LCD (normally black) |
| Panel active area | 10.4" diagonal (6" x 8") |
| Panel resolution | 1024 x 768 |
| Color depth | 262,144 colors, 64 grayscales (256 w/ dithering) |
| Viewing angle | H: +/-80° V: +/-80° |
| Backlight | LED backlight |
| Luminance | 0.1 up to 200fL |
| Sunlight readability | Contrast ratio >14:1 @ 10,000 fC |
| NVG compatibility | MIL-STD-3009 Type I/II, NVIS Class B |
INTERFACES
| Video inputs (1) | 1 DVI digital video 1 HD-SDI (SMPTE-292M) Up to 6 (depending on the type) Analog inputs RS-170, NTSC, PAL, S-Video, VGA to XGA RGB (SoG or +H, +V),STANAG 3350 B/C |
| Inputs/Outputs (1) | RS-422 communication for keyboard, touchscreen, video source/mode selection, OSD control and BIT data retrieval Discretes for display configuration, lighting mode selection, etc. RS-232 maintenance interface |
CONTROLS
| Brightness control | Automatic, manual or commanded through the RS-422 |
| Bezel controls | 24 programmable function keys, brightness & contrast |
| Touch screen | Multi-touch capability through PCAP with built-in mechanisms for certifiable touch interface |
GENERAL SPECIFICATIONS
| Power supply | 28VDC, MIL-STD-704A |
| Power consumption | 55W @ 120fL (20C ambient) |
| Weight | 3.8 kg / 8.4 lbs |
| Cooling | Internal fans |
| Built-in testing | PBIT / CBIT / IBIT |
| Software | RTCA/DO-178 Design Assurance Level (DAL) C |
| Hardware | RTCA/DO-254 Design Assurance Level (DAL) C |
ENVIRONMENTAL CONDITIONS
| Compliance | DO-160E |
| High temperature | +55C operational / +71C short-time / +85C ground survival |
| Low temperature | -45C operational / -45C short-time / -55C ground survival |
| Altitude | 40,000 ft |
