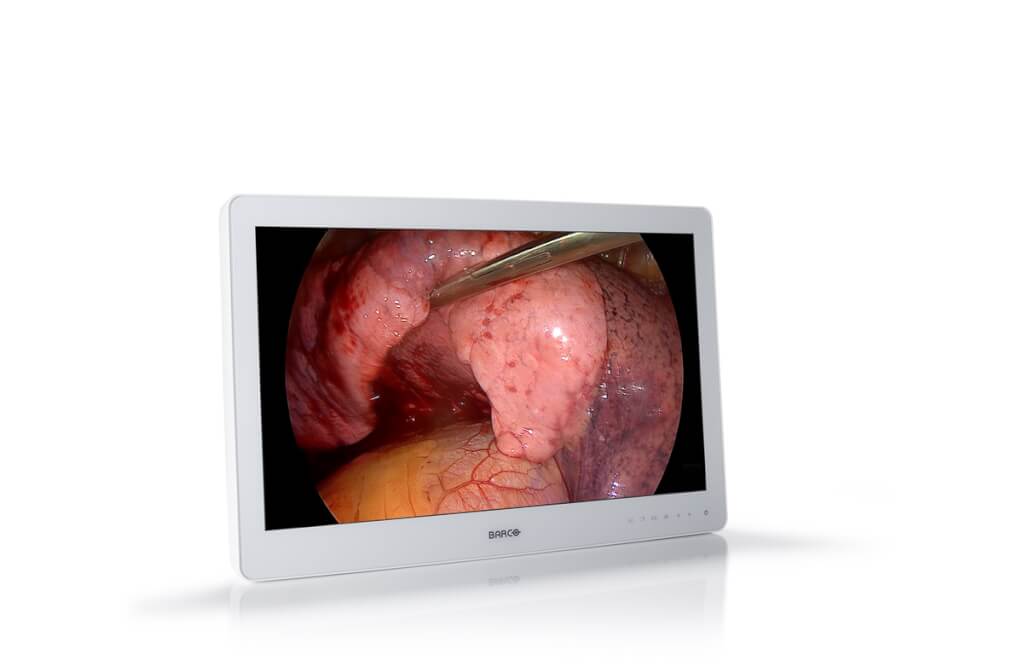

MDSC-2326 High Bright

Full HD 26" high-bright surgical display

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

Barco's MDSC-2326 features:

  • 26” wide-screen LCD
  • Full HD resolution (1,920 x 1,080)
  • High-bright LED backlight with output stabilization
  • Wide viewing angle thanks to IPS-Pro LCD technology
  • Artifact-free images
  • Calibrated, consistent colors and grayscales
  • Easy-clean design with sealed front (IPX5)
  • Smart cable management system

Barco’s MDSC-2326 High Bright is a 26-inch, near-patient surgical display with LED backlight. In addition to the renowned image quality performance of MDSC-2226, the new model offers very high brightness for improved visualization under all ambient conditions. The new scratch-resistant, high quality optical glass offers durable protection throughout the display's lifetime.

Ease of mind

Calibrated, artifact-free images

The display’s high brightness, high contrast and calibrated colors provide surgeons with excellent depth perception and the most accurate images from FHD endoscopy camera systems.

Multi-source, multi-display imaging

With its broad input connectivity, the MDSC-2326 offers flexible multi-modality imaging (PiP & PaP) in new integrated operating rooms. Featuring an integrated Barco Nexxis decoder (optional) it offers the most convenient visualization solution for uncompressed video-over-IP without delay.

Safety, stability and redundancy

Thanks to its high-bright LED backlight with light output stabilization, the display ensures lifetime-long performances and image consistency. It also offers a unique, automated failover feature so a backup signal is always available to ensure safe surgery

Ease of installation

The MDSC-2326 comes with a smart cable management system that hides the cables for a clutter-free set-up. Its lightweight design allows easy mounting on surgical booms and spring arms.

Ease of use

Barco’s MDSC-2326 allows for easy cleaning and disinfection thanks to its smooth surface, splash-proof housing (front protection level IPX5). It comes with a highly durable, scratch-resistant front glass featuring excellent optical performance.


Screen technology TFT AM LCD / IPS-PRO technology / LED backlight
Active screen size (diagonal) 661 mm (26")
Active screen size (H x V) 576 x 324 mm (22.7” x 12.8")
Aspect ratio 16:09
Resolution 2MP (1920 x 1080)
Pixel pitch 0.3 mm
Color support 1,073 million (10 bit)
Viewing angle 178° Hor / 178° Ver
Maximum luminance Max: 900 cd/m² (typ.)
  @6500K : 600 cd/m2 stabilized(typ.)
  X-ray setting: 750 cd/m2 stabilized(typ.)
Contrast ratio 1400:1 (Typ.)
Response time T on + T off = 18 msec (typ.)
White point Calibrated: 5600K, 6500K, 7600K, 9300K
Gamma curve Native, 1.8, 2.0, 2.2, 2.4, DICOM
Front protection screen 2-side, scratch-resistant AR alkali-aluminosilicate glass
Keyboard Capacitive 7-key touch Keyboard

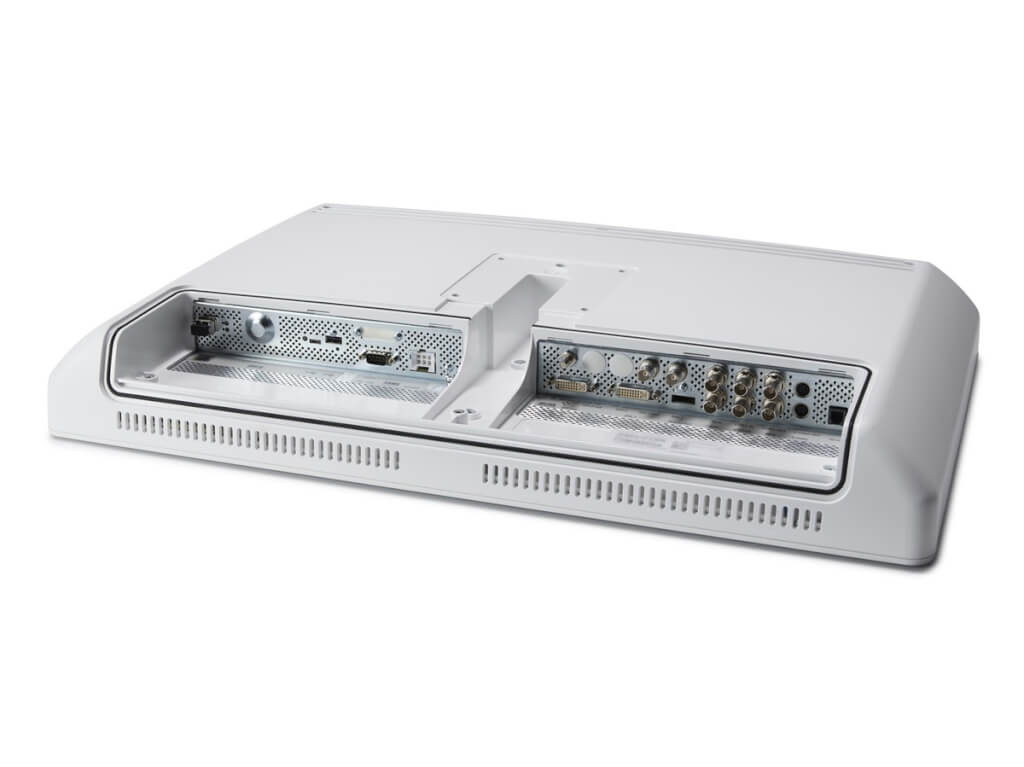

Video inputs MDSC-2326 DDIH
  DVI-I (Digital & Analog – HDMI support)
  2x 3G-SDI(2x BNC)
  DisplayPort 1.1a
  Component Video RGBS / YPbPr (4xBNC)
  S-video (4-pin Mini DIN)
  Composite video / SOG (1xBNC)
  MDSC-2326 MNAH
  Same as MDSC-2326 DDIH + BARCO NEXXIS MNA-120 decoder integrated (for uncompressed video over IP)
Video outputs DVI-D (output selectable from DVI-1, DVI-2, Nexxis)
  S-video (4-pin Mini DIN)
  Composite video (1x BNC)
  2x 3G-SDI (2x BNC)
Features Picture-in-Picture, Failover mode
Remote control RS-232 (D-sub 9-pin)
Power requirements (nominal) MDSC-2326 H: 85W / 24V ± 10%
  MDSC-2326 MNAH: 110W / 24V ± 10%
External power supply AC input: 100 – 250 VAC / 47-63 Hz auto-switch
  DC output: +24 VDC / 6 A
Dimensions w/o stand (W x H x D) 640 x 419 x 87 mm (25.2 x 16.5 x 3.4”)
Net weight w/o stand 9.4 kg / 20.7 lbs (MDSC-2326 LEDH)
  9.8 kg / 21.6 lbs (MDSC-2326 MNAH)
Net weight packaged w/o stand 12.5 Kg / 27.6 lbs (MDSC-2326 LEDH)
  12.9 Kg / 28.4 lbs (MDSC-2326 MNAH)

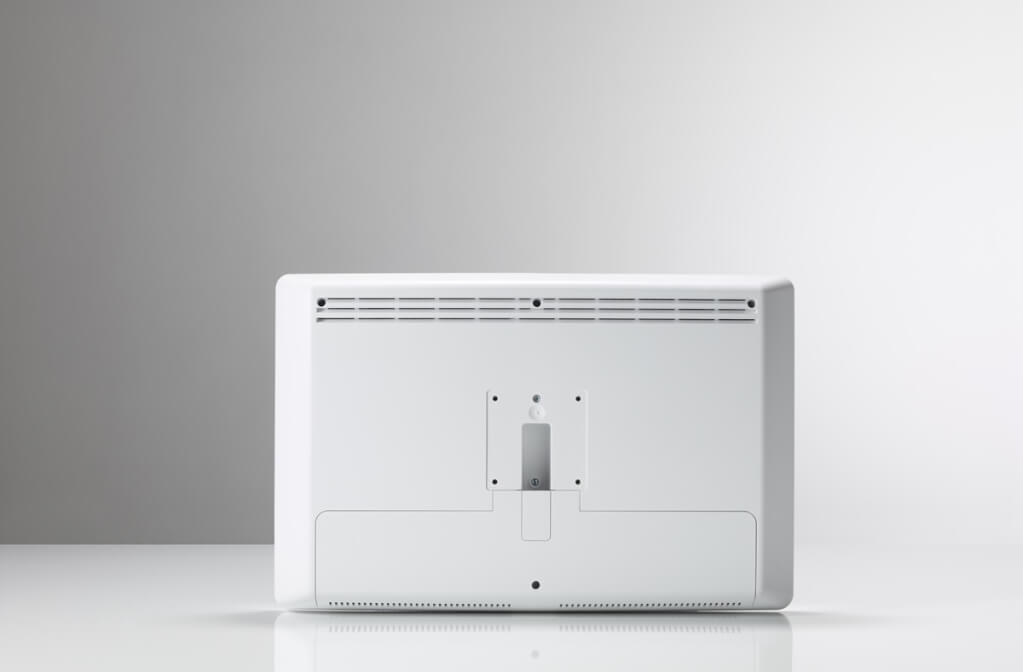

Mounting standard 100 x 100 mm VESA
Temperature Operating: 0° - 35° C
  Storage: -20° - 50° C
Humidity Operating: 10% – 85% R.H.
  Storage: 5% – 85% R.H.
Regulation Compliance IEC60601 3rd Edition
  Approvals/Marking: CE, C-UL-US, DEMKO
  Safety (Medical equipment): IEC60601-1, UL60601-1, CAN/CSA C22.2 No. 60601-1-08
  Electromagnetic compatibility: EMC Medical
  EMC standards: IEC60601-1-2, EN55011 /CISPR 11, FCC CFR47 part 15 & 18/Class B (MDSC-2326 DDI), Class A (MDSC-2326 MNA)
  Green requirements: ROHS2, REACH, WEEE compliant
Protection rating IP21 (IPX5 front side)
Warranty 3 years
Green compliance ROHS-2, REACH, WEEE
