MDSC-2326
Full HD surgical display
Základní informace
- For the best hand-eye coordination
- Allows for easy cleaning and disinfection
- Works with Nexxis for video-over-IP integration

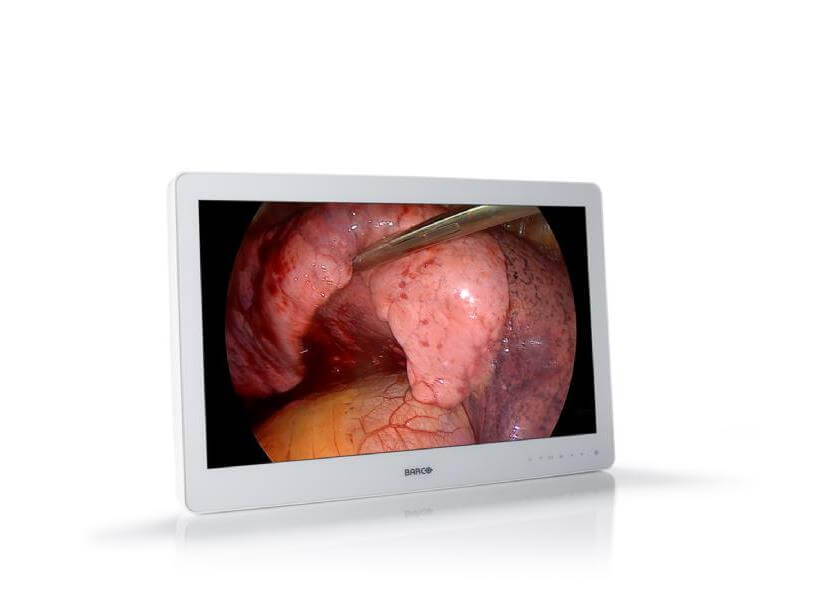

Barco’s MDSC-2326 is a 26-inch, near-patient surgical display with LED backlight. Next to the renowned image quality of the MDSC-2226, the new scratch-resistant, high quality optical glass offers durable protection throughout the display's lifetime.
Ease of mind
Calibrated, artifact-free images
The display’s stabilized brightness, high contrast and calibrated colors provide surgeons with excellent depth perception and the most accurate images from FHD endoscopy camera systems.
Multi-source, multi-display imaging
With its broad input connectivity, the MDSC-2326 offers flexible multi-modality imaging (PiP & PaP) in new integrated operating rooms. Featuring an integrated Barco Nexxis decoder (optional) it offers the most convenient visualization solution for uncompressed video-over-IP without delay.
Safety, stability and redundancy
Thanks to its LED backlight with light output stabilization, the display ensures lifetime-long performances and image consistency. It also offers a unique, automated failover feature so a backup signal is always available to ensure safe surgery
Ease of installation
The MDSC-2326 comes with a smart cable management system that hides the cables for a clutter-free set-up. Its lightweight design allows easy mounting on surgical booms and spring arms.
Ease of use
Barco’s MDSC-2326 allows for easy cleaning and disinfection thanks to its smooth surface, splash-proof housing (front protection level IP45). It comes with a highly durable, scratch-resistant front glass featuring excellent optical performance.
Barco's MDSC-2326 features:
- 26” wide-screen LCD
- Full HD resolution (1,920 x 1,080)
- High-bright LED backlight with output stabilization
- Wide viewing angle thanks to IPS-Pro LCD technology
- 10-bit image processing
- Artifact-free images
- Calibrated, consistent colors and grayscales
- Easy-clean design with sealed front (IPX5)
- Smart cable management system
Specifikace
| Screen technology | TFT AM LCD |
| Active screen size (diagonal) | 661 mm (26.0") |
| Active screen size (H x V) | 576 x 324 mm (22.7” x 12.8") |
| Aspect ratio | 16:9 |
| Resolution | 2MP (1920 x 1080) |
| Pixel pitch | 0.300 mm |
| Color support | 1073 million (10-bit) |
| Viewing angle | 178° (panel typical) |
| Maximum luminance | 500 cd/m² (panel typical) 400 cd/m² 'stabilized @6500K & ITU-709 |
| Contrast ratio | 1400:1 (panel typical) |
| Response time (Tr + Tf) | 18 ms (typical) |
| Housing color | White RAL 9003 |
| Video inputs |
MDSC-2326 LED MDSC-2326 DDI MDSC-2326 MNA |
| Video outputs | DVI-D S-video (4-pin Mini DIN) Composite video (1x BNC) 3G-SDI (BNC) / DDI version: 2 x 3G-SDI |
| Power requirements (nominal) | Power source for external power supply: 100 – 250 VAC / 47-63 Hz auto-switch Power source for display power input: +24 VDC / 2.5A |
| Power consumption | 50W max (LED and DDI version) 75W max (MNA version) |
| Power management | DVI-DMPM states supported Power On state Active-Off state |
| Dot clock | 165 MHz max (DVI) |
| Gamma curve | Native, 1.8, 2.0, 2.2, 2.4, DICOM |
| OSD languages | English, French, German, Spanish, Italian |
| Dimensions w/o stand (W x H x D) | 640 x 419 x 87 mm (25.2 x 16.5 x 3.4”) |
| Dimensions power supply (W x H x D) | 210 x 103 x 52 mm (8.27 x 4.06 x 2.05") |
| Net weight w/o stand | 9.4 kg (20.7 lbs) (LED and DDI version) 9.8 kg (21.6 lbs! (MNA version) |
| Net weight power supply | 1.5 kg (3.31 lbs) |
| Net weight packaged w/o stand | 12.5 kg (27.6 lbs) (LED and DDI version) 12.9 kg (28.4 lbs) (MNA version) |
| Power supply DC output cable length | 2.5 m (8.2 ft) |
| Mounting standard | VESA (100 x 100 mm) |
| Screen protection | Protective, non-reflective glass cover |
| Recommended modalities | Endoscopy, Laparoscopy, PACS, PM, US, CT, MR |
| Certifications | CE (Medical Device Class I) ANSI/AAMI ES 60601-1:2005; A1:2012 – Med. El. Equip., Part 1: general req. for basic safety and essential performance CAN/CSA-C22.2 No. 60601-1: 2014 Medical Electrical Equipment – Part 1: General Requirements for Basic Safety and Essential Performance (Adopted IEC 60601-1:2005, third edition, 2005-12) IEC 60601-1: 2005 + CORR. 1:2006 + CORR. 2:2007 + A1:2012 (Medical electrical equipment – Part 1: General requirements for basic safety and essential performance) EN 60601-1: 2006 + A1:2013 + A12:2014 (Medical electrical equipment”. Part 1: General requirements for safety) INMETRO |
| Supplied accessories | 1x DVI-D video cable 1x printed User Guide (English) 1x documentation disc, containing all translations of the User Guide 1x external power supply 4 screws, 4 dented washers and an Allen key Mains cables |
| Optional accessories | Barco stand (K9302097A) Power extension cable 10m (K3495066) Power extension cable 30m (K3495068) |
| Warranty | 3 years |
| Operating temperature | 10 ~ 35°C for performance / 0 ~ 40°C for safety |
| Storage temperature | -20 ~ +60°C |
| Operating humidity | 10 ~ 90% (non-condensing) |
| Storage humidity | 10 ~ 90% (non-condensing) |
| Operating altitude | 3000 m max |
| Storage altitude | 12000 m max |
