Full HD 24-inch surgical display

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • For the best hand-eye coordination
  • Allows for easy cleaning and disinfection
  • Works with Nexxis for video-over-IP integration

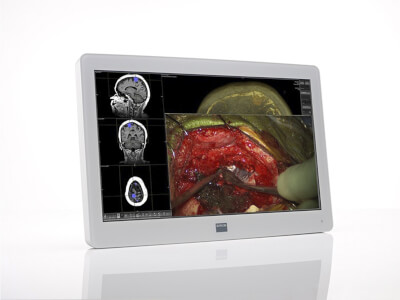

Barco's MDSC-2324 is a 24-inch near-patient surgical display with LED backlight, featuring full HD resolution and a wide color gamut. Purpose-built for the operating room, the MDSC-2324 offers an easy-clean design, smart mechanics and the most detailed images in the procedure room today.

Color-calibrated, artifact-free images

Thanks to its high brightness, high contrast and high resolution, the MDSC-2324 presents surgeons with accurate, realistic images and excellent depth perception. It also offers the fastest, lag-free transmission of surgical images and the highest image quality available today.

Our next-generation motion adaptive de-interlacing and noise reduction algorithms, using full 10-bit image processing, are your guarantee for detailed, sharp, and noise-free pictures, so you can detect the most subtle changes in tissue color.

Multi-source, multi-display imaging over IP

With its broad input connectivity, the MDSC-2324 offers the highest flexibility for multi-modality imaging (PiP & PaP), enabling reproduction of images from multiple sources and to multiple displays in the integrated operating room.

The 24-inch display is one of Barco's network-enabled surgical displays and offers integrated functionality (optional) for use with Nexxis digital OR, ensuring smooth distribution of uncompressed video and data over the IP network without delay.


Designed for use in the operating room

Barco's MDSC-2324 allows easy cleaning and disinfection thanks to its smooth surface, splash-proof housing, and front screen protection (IP45). The fan-less design avoids the spread of contaminants.

The display comes with a smart cable management system that hides the cables for a clutter-free set-up. It is light and compact, allowing easy (dual-monitor) mounting on surgical booms and spring arms.


Screen technology TFT AM LCD / LED backlight
Active screen size (diagonal) 611.3 mm (24")
Active screen size (H x V) 518.4 x 324 mm (20.4” x 12.7")
Aspect ratio 16:10
Resolution 1920 x 1200
Pixel pitch 0.270 mm
Color imaging Yes
Color support 1073 million (10-bit)
Color gamut Wide gamut (Adobe RGB 1998)
Viewing angle 178° Hor / 178° Ver
Maximum luminance 400 cd/m² (typical)
Contrast ratio 1500:1 (typical)
Dot clock (max) 165 Mhz
Gamma curve Native, 1.8, 2.0, 2.2, 2.4, DICOM
Housing color White RAL 9003
Video inputs Video input signals:
  -DVI-I Single-Link (Digital & Analog – HDMI video support with HDCP)
  -Component Video RGBS / YPbPr (4xBNC)
  -S-video (4-pin Mini DIN)
  -Composite video (1xBNC)
  -3G-SDI (1xBNC)
  -DisplayPort (VESA std 1.1a)
  -Optional: integrated BARCO Nexxis network adapter
  Video input formats:
  -VGA & DVI: Up to 1920x1200 at 60Hz (reduced blanking)
  Maximum pixel clock: 165MHz
  Maximum Hor freq: 90kHz
  Maximum Ver freq: 75Hz
  -Standard PAL and NTSC for S-Video, Composite and Component
  -Component YPbPr/ RGBS: HDTV - up to 1080i & 1080p
  -SDI Format Supported: 625/25 PAL, 525/29.97 NTSC, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94, 720p60, 1080p50, 1080p59.94, 1080p60
  -SDI Compliance: SMPTE 425M (Level A), SMPTE 424M, SMPTE 292M, SMPTE 259M-C, SMPTE 296M, ITU-R BT.656, ITU-R BT.601
  -Displayport 1.1a: up to 1920 x 1200 60Hz
Video outputs DVI-D
  S-video (4-pin Mini DIN)
  Composite video (1xBNC)
  3G-SDI (1xBNC)
Remote control RS-232 (D-sub 9-pin)
Power requirements (nominal) Power source for external power supply: 100 – 250 VAC / 47-63 Hz auto-switch
  Power source for display power input: +24 VDC / 2.3A LED version, 3.2A MNA version
  Power supply for external module: +5VDC ±10% @500mA (max) through the DVI connectors DVI-in & DVI-out (on pin 14 or pin 16 - OSD programmable)
Power management DVI-DMPM states supported
  Power On state
  Active-Off state
Power consumption 55W max (LED version)
  75W max (MNA version)
OSD languages English, French, German, Spanish, Italian
Dimensions w/o stand (W x H x D) 595 x 414 x 84 mm (23,4” x 16,3” x 3,3”)
Net weight w/o stand 7.9 kg / 17.4 lbs (MDSC-2224 LED)
  8.3 kg / 18.3 lbs (MDSC-2224 MNA)
Net weight packaged w/o stand 12.0 Kg (26.5 lbs) LED version
Mounting standard 100 x 100 mm VESA
Screen protection IP21 / Front face: IP45
  Double coated, anti-reflective PMMA / White RAL 9003
Recommended modalities Endoscopy, laparoscopy, X-ray, CT, MR, US
Regulation Compliance CE (MDD) Class I, essential requirements of MDD 93/42/EEC, version 2007 (in effect as of March 2010), EN 60601-1 (Ed.3) +A1: 2013 +A12: 2014, IEC 60601-1 (Ed. 3)
  +A1: 2012, IEC 60601-1-6 (Ed. 3); Am1, IEC 62366(Ed.1); Am1, ANSI/AAMI ES 60601-1 (Ed. 3) +A1: 2012; C1: 2009/(R) 2012 and A2: 2010/(R)2012,
  CSA CAN/CSA-C22.2 NO. 60601-1:14, IEC/EN 60601-1-2: 2014, EN 55011/CISPR11 (MDSC-2324 MNA: Class A, MDSC-2324 DDI: Class B), FCC CFR 47 Part 15 Subpart B
  (MDSC-2324 MNA: Class A, MDSC-2324 DDI: Class B), RoHS compliant, IP21 (IP45 front side only)
Temperature Operating: 0° - 40° C / Storage: -20° - 60° C
Humidity Operating: 20% - 85% R.H. / Storage: 10% - 85% R.H.
Keyboard/mouse Touch-sensitive, 7-key, backlit, bottom-right
Supplied accessories User Manual, DVI Dual-Link cable 3.0m, Mains cables ( EU (CEBEC/KEMA) & US (Hospital grade UL)), External power supply
Optional accessories Barco Surgical LCD Display Desk Stand, Extension Cable 10m & 30m
Warranty 3 years
