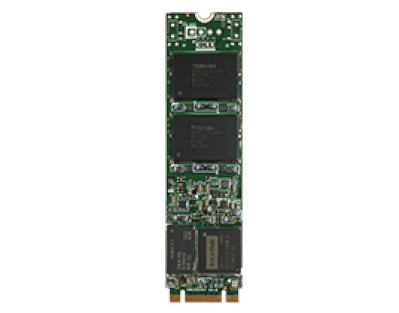

M.2 (S80) 3MV2-P

InnoREC solution for surveillance application

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • InnoREC solution for surveillance application
  • Exclusive REC line for video recording
  • Ensure steady performance with any frame-loss
  • Intelligent error recovery system
  • Zero mechanical interference
  • Anti-vibration mechanical design
  • Support S.M.A.R.T, TRIM,NCQ and iData Guard

InnoREC is innodisk’s proprietary flash feature set designed specifically for surveillance applications. Through the smart integration of firmware and hardware, the speed and performance required by modern surveillance solutions is fully met. M.2 (S80) 3MV2-P products provide high capacity flash memory Solid State Drive (SSD) that electrically complies with Serial ATA (SATA) standard. It supports SATA III standard (6.0GHz) with high performance and supports several features, including REC line, iData Guard, iCell, quick erase, thermal sensor, and S.M.A.R.T.


Model Name M.2 (S80) 3MV2-P
Interface SATA III 6.0 Gb/s
Flash Type MLC
Capacity 32GB~1TB
Max. Channels 4
Sequential R/W (MB/sec, max.) 560 / 450
Max. Power Consumption 4.6W (3.3V x 1.4A )
Thermal Sensor Y
H/W Write Protect Optional
ATA Security Y
S.M.A.R.T. Y
Dimension (WxLxH/mm) 22.0 x 80.0 x 3.5
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C;
Industrial Grade: -40°C ~ +85°C
