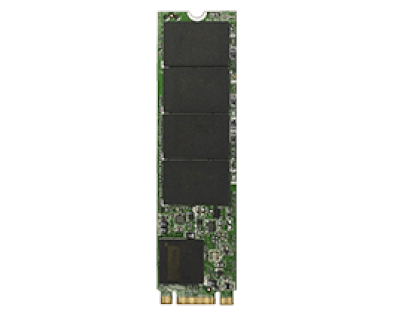

M.2 (S80) 3IS2-P

SATA III solution for Server Boot-Up Drive

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • SATA III solution for Server Boot-Up Drive
  • Cost-effective flash with iSLC
  • iSMART disk health monitoring
  • Intelligent error recovery system
  • High IOPS to enhance boot up timing
  • Zero mechanical interference
  • iData Guard for abnormal power failure
  • DEVSLP supported

Innodisk M.2 (S80) 3IS2-P is designed as the standard M.2 form factor with SATA interface, and supports SATA III standard (6.0Gb/s) with excellent performance. The form factor refers to the M.2(NGFF) specification which established by JEDEC.

Innodisk M.2 (S80) 3IS2-P is designed for server field. It effectively reduces the booting time of operation system and has less power consumption compared to hard disk drive (HDD). The great benefit of M.2 (S80) 3IS2-P is to be configured as a SATA boot device with no requirement on additional driver and without using a drive bay, making it perfect
for server applications.

Specifikace

Model Name M.2 (S80) 3IS2-P
Interface SATA III 6.0 Gb/s
Flash Type iSLC
Capacity 32GB~512GB
Max. Channels 4
Sequential R/W (MB/sec, max.) 560/450
Max. Power Consumption 1.5W (3.3V x 450mA )
Thermal Sensor Y
H/W Write Protect Optional
ATA Security Y
S.M.A.R.T. Y
Dimension (WxLxH/mm) 22.0 x 80.0 x 3.5
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C;
Industrial Grade: -40°C ~ +85°C
