M.2 (S42) 3IE3

SATA 6Gb/s interface

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • SATA 6Gb/s interface
  • iSMART disk health monitoring
  • Intelligent error recovery system
  • Excellent data transfer speed
  • Zero mechanical interference
  • Anti-vibration mechanical design

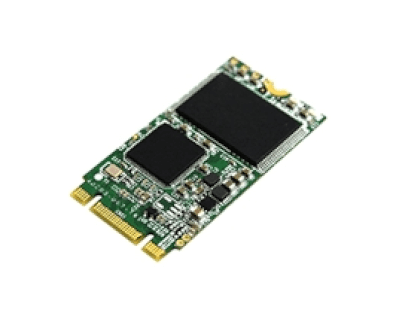

Innodisk M.2 (S42) 3IE3 is designed as the standard M.2 form factor with SATA interface, and supports SATA III standard (6.0Gb/s) with excellent performance. The form factor refers to the M.2(NGFF) specification which established by JEDEC. Regarding of mechanical interference, Innodisk M.2 (S42) 3IE3 absolutely replaces the traditional hard disk and makes personal computer, in any field, smaller and easier.


Innodisk M.2 (S42) 3IE3 effectively reduces the booting time of operation system and the power consumption is less than hard disk drive (HDD), and complies with ATA protocol, no additional drives are required, and can be configured as a boot device or data storage device.

Specifikace

Model Name M.2 (S42) 3IE3
Interface SATA III 6.0 Gb/s
Flash Type iSLC
Capacity 8GB~64GB
Max. Channels 2
Sequential R/W (MB/sec, max.) 200/80
Max. Power Consumption 1.3W (3.3V x 370 mA )
Thermal Sensor Wide Temp. only
H/W Write Protect N
ATA Security Y
S.M.A.R.T. Y
Dimension (WxLxH/mm) 22.0 x 42.0 x 3.2
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C;
Industrial Grade: -40°C ~ +85°C
