V2.5

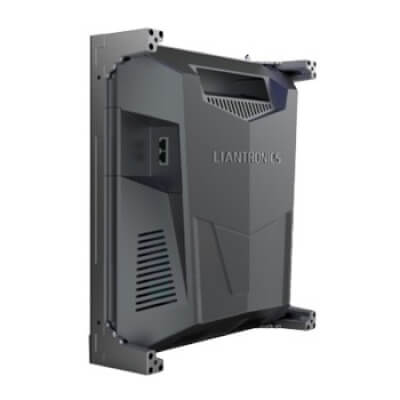

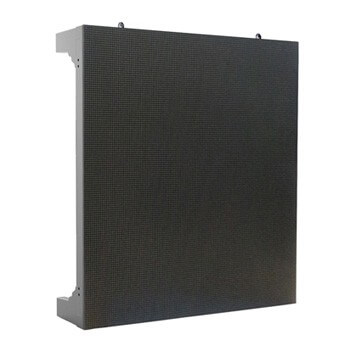

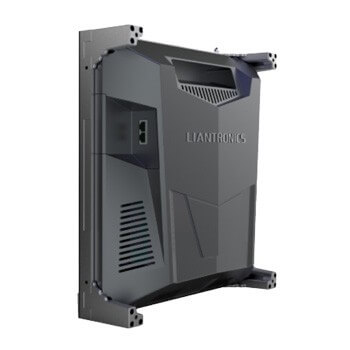

LED displej Rozteč pixelů: 2.5 mm Rozměr panelu: 325 × 365 mm
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Klíčové prvky
Product Features
More Flexible Matching: With an aspect ratio of 8:9, panels are easy to be pieced together to play standard 4:3 and 16:9 videos.
Seamlessness: Die-casting aluminum panel, high-precision design and CNC processing minimize the error within 0.05mm.
Long lifespan: Low-voltage power supply with high-efficiency causes little temperature rise, which helps to prolong the life of LED display in stable use.
Perfect Image: No flicker, no brightline or darkline ensures the LED display to take on more perfect image.
Industrialized Production: Patented technology, independent die sinking, precise welding and automatic processing all take the lead in LED industry.
Core Advantages
Color Uniformity: The LED display would present uniform color at all times with low power consumption and low temperature rise.
No Blackout during Use: Reliable communication-level power supply and rational power distribution system lead to stable and safe operation.
No Black Screen during Use: Constituted by loop transmission, intelligent switch, anti-hacker security and fault alarm, the most reliable data transmission mode is incorporated internally.
Safe Maintenance: It supports hot swapping, which is more safe and convenient for maintenance personnel.
Specifikace
| Item | Value |
| Pixel Pitch（mm） | 2.5 |
| Pixel Pitch（inch） | 0.1 |
| Pixel Density（pixels/m2） | 155000 |
| Pixel Configuration | SMD LED |
| Panel Size (inch) | 12.8 (W)× 14.4 (H)× 3.5(D) |
| Panel Size（mm） | 325 (W)× 365 (H)× 90(D) |
| Panel Resolution（W×H） | 128× 144 |
| Panel Type and Material | Die - casting aluminum |
| Weight（kg/pcs） | 4.5 |
| White balance brightness(nits) | 600-800 adjustable |
| *Avg. Power Consumption（W/m2） | 133 |
| *Max. Power Consumption（W/m2） | 400 |
| Serviceability | Front/Rear |
| Horizontal/Vertical Viewing Angle（deg.） | 160(H)/160(V) |
| Refresh Rate（Hz） | 1920/3840 |
| Gray Level（Bit） | 12/14/16 |
| Contrast Ratio | 3000:01:00 |
| Color Temperature（K） | 2000≤ TC≤ 9300 adjustable |
| Brightness Adjustment | Programmable/auto/manual |
| Color Calibration | Brightness and chroma calibration |
| Protection Grade | IP30 |
| Flatness(mm) | ≤0.2 |
| Others | Communication - level power supply(customization), hot double backup, temperature and humidity test, multi - signal input support, etc. |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to LianTronics | |
