RK10
Tenčí a lehčí venkovní rental LED displej pro pódiové instalace.
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Základní informace
- Rozteč pixelů: 10mm
- Konfigurace pixelů: SMD
- Jas: 5500 nits
- Obnovovací frekvence: ＞1920 Hz
- Rozměr panelu: 640×720×100 mm
Specifikace
| Item | Value |
| Pixel Pitch(mm) | 10 |
| Pixel Density(pixels/㎡) | 10000 |
| Viewing Angle(Deg.) | 140(H)/70(V) |
| Brightness(nits) | 5500 |
| Grey Level(bit) | 16 |
| Refresh Rate(Hz) | ＞1920 |
| Panel Size(mm) | 640(W)×720(H) |
| Panel Size(inch) | 25.20(W)×28.35(H) |
| Panel Resolution(pixels) | 64×72 |
| Panel Weight(kg) | 13.5 |
| Max.Hanging Panel Quantity(Vertical) | 15 |
| Panel Type and Material | Die-casting Aluminum |
| Module Size(mm) | 320(W)x240(H) |
| Module Size(inch) | 12.60(W)x9.45(H) |
| Module Resolution(pixels) | 32×24 |
| Protection Grade(Front/Rear) | IP65/IP43 |
| Serviceability | Rear |
| Voltage(V) | AC 110/220 |
| Avg.Power Consumption(W/㎡) | 300 |
| Max.Power Consumption(W/㎡) | 900 |
| Brightness Adjustment | Manual/Auto/Programmable |
| Operating Temp/Humidity(℃/%RH) | -20～+50, 10～90 |
| Storage Temp/Humidity(℃/%RH) | -40～+85, 10～95 |
| Lifetime(Nomal Temp)(hours) | 50000 |
| Compliant Standard | CE,FCC,RoHS,TUV |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to LianTronics | |
Klíčové prvky

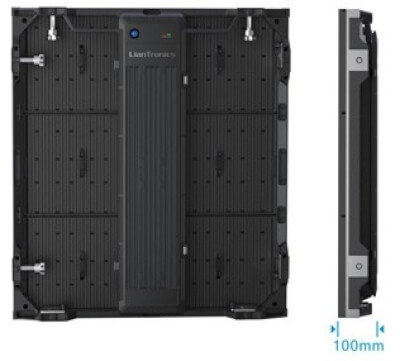

Light & Slim Panel
Each panel is carefully crafted and only weighs at 13.5 kg.
Seamless Design
Every Panel is manufactured with CNC auto-machines of high precision
so that to guarantee its seamlessness during assembly.
Stable power supply and module operation ensured by waterproof hole for heat dissipation.
Fast installation achieved by tool-free thread lock.
Self-inspection function and working state indicator
Integrated handle design convenient for transport
