M10
Venkovní rental LED displej.
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Základní informace
Rozteč bodů: 10,4 mm
Rozměry panelu: 500 x 1 000
Svítivost (nits): 4 500
Hmotnost: 12,5 kg
Specifikace
| Item | Value |
|---|---|
| Pixel Pitch(mm) |
10.4
|
| Pixel Density(pixels/㎡) |
9216
|
| Pixel Configuration |
SMD 3 in 1
|
| Brightness(nits) |
≥4500
|
| Viewing Angle(Deg.) |
140(H)/140(V)
|
| Transparent Rate |
15%
|
| Grey Level(bit) |
16
|
| Refresh Rate(Hz) |
＞1920
|
| Module Dimension(mm) |
500(W)×83.3(H)
|
| Module Dimension(inch) |
19.68(W)×3.28(H)
|
| Module Resolution(pixels) |
48×8
|
| Panel Dimension(mm) |
500(W)×1000(H)×90(D)
|
| Panel Dimension(inch) |
19.68(W)×39.37(H)×3.54(D)
|
| Panel Resolution(pixels) |
48×96
|
| Panel Materia |
Aluminum Profile
|
| Panel Weight(kg) |
12.5
|
| Max.Hanging Panel Quantity(Vertical) |
10
|
| Voltage(V) |
AC 110/220
|
| Avg. Power Consumption (W/㎡) |
240(DC)
|
| Max. Power Consumption (W/㎡) |
720(DC)
|
| Serviceability |
Rear
|
| Protection Grade(Front/Rear) |
IP65/IP54
|
| Operating Temp /Humidity (%RH) |
-20~+50/10~90
|
| Storage Temp /Humidity (%RH) |
-40~+85/10~95
|
| Lifetime (H) |
≥50000(Normal Temp)
|
| Compliant Standard |
CE,RoHS,FCC
|

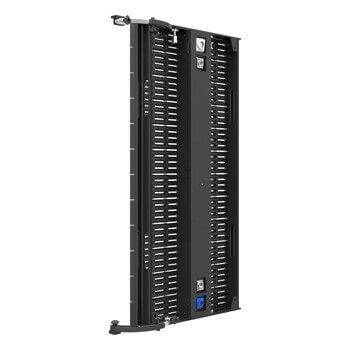

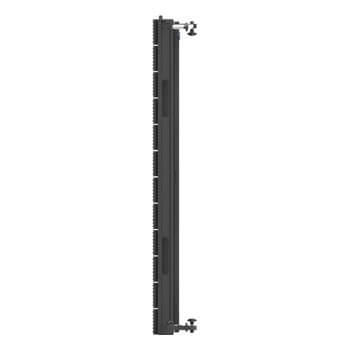

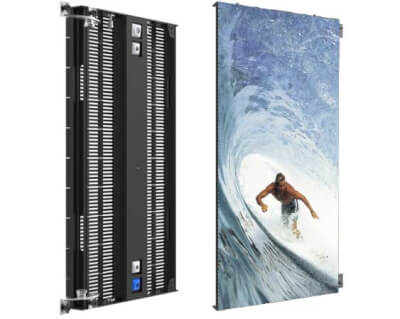

Fotogalerie
