SHARK

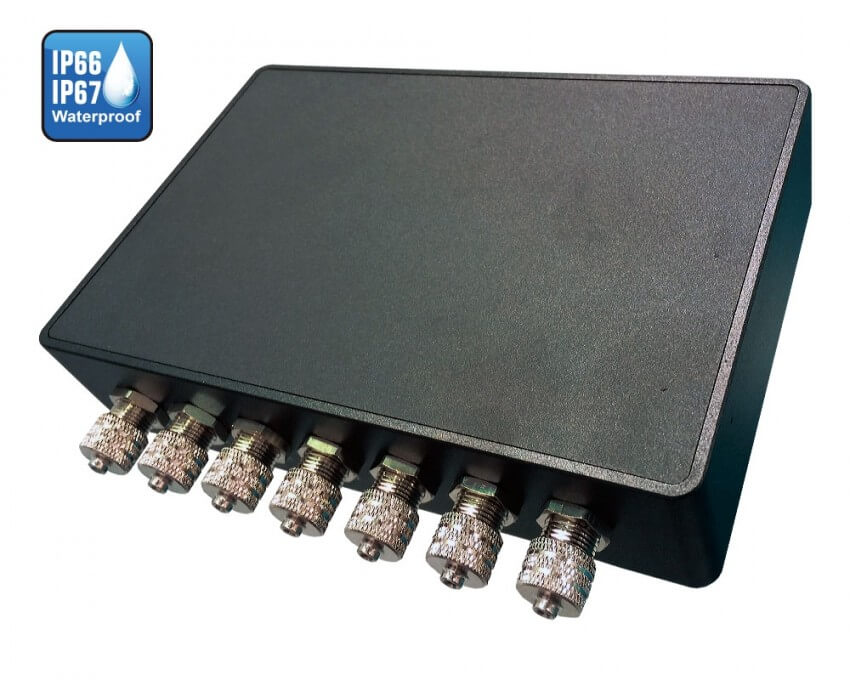

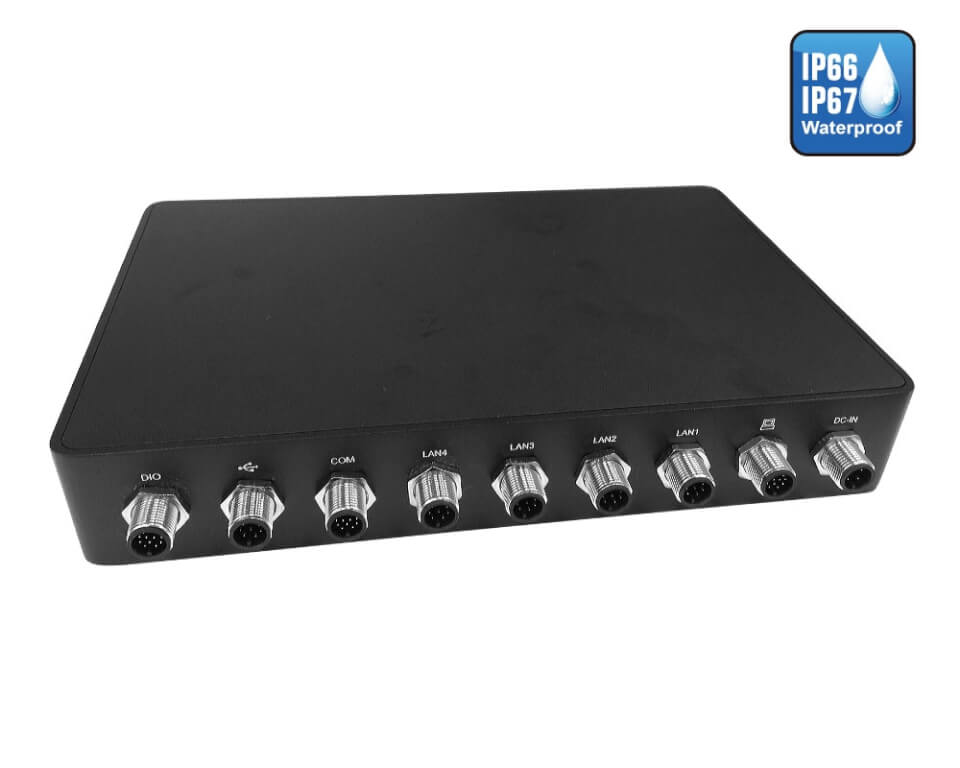

Průmyslové Box PC s krytím IP67

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073 pchalupa@nowatron.cz

Pro podrobné technické informace nás prosím kontkatkutjte.

MODEL		7" + 2I385HW
Dimension (mm)		184.7W x 40H x 122.5D mm
Weight		2 Kg
Hard drive		mSATA, 2.5" HDD
MB		2I385HW
CPU		Intel Bay Trail-I E3815 1.46 GHz (Single Core) Intel Bay Trail-I E3845 1.91 GHz (Quad Core)
Chipset
Memory	Type / Capacity	E3815 DDR3L 1066MT/s E3845 DDR3L 1333MT/s
	SO-DIMM	N/A
	On board memory	2 / 4GB
SSD Storage	CF (CFast)	N/A
	mSATA	Yes
	On Board SSD	N/A
VGA		Yes
DVI / HDMI		N/A
USB		5
COM		4
MiniPCIe		2
SIM Card Holder		N/A
GPIO		4DI / 4DO (Optional)
Ethernet		Intel GbE x 2
Audio		Line-out / Mic-in (Optional)
Power Input		Wide Range +9~36V
Battery		option
Mounting		VESA 75 & Panel Mount
Panel frame water proof		IP66 / IP67
Optional MB		2I268H / 2I847H
Expansion		GPS, 3G / 4G, Bluetooth, WI-FI
Operating Temp.		-20°C~60°C for mSATA / SSD HDD
Operating Humidity		5~90% @ 39°C, non-condensing

MODEL		10.1" + 2I385HW
Dimension (mm)		250W x 40H x 168D mm
Weight		2.5 Kg
Hard drive		mSATA, 2.5" HDD
MB		2I385HW
CPU		Intel Bay Trail-I E3815 1.46 GHz (Single Core) Intel Bay Trail-I E3845 1.91 GHz (Quad Core)
Chipset
Memory	Type / Capacity	E3815 DDR3L 1066MT/s E3845 DDR3L 1333MT/s
	SO-DIMM	N/A
	On board memory	2 / 4GB
SSD Storage	CF (CFast)	N/A
	mSATA	Yes
	On Board SSD	N/A
VGA		Yes
DVI / HDMI		N/A
USB		5
COM		4
MiniPCIe		2
SIM Card Holder		N/A
GPIO		4DI / 4DO (Optional)
Ethernet		Intel GbE x 2
Audio		Line-out / Mic-in (Optional)
Power Input		Wide Range +9~36V
Battery		option
Mounting		VESA 75 & Panel Mount
Panel frame water proof		IP66 / IP67
Optional MB		2I268H
Expansion		GPS, 3G / 4G, Bluetooth, WI-FI
Operating Temp.		-20°C~60°C for mSATA / SSD HDD
Operating Humidity		5~90% @ 39°C, non-condensing
