NEMO

Materiál: hliník Vodotěsný: krytí IP66 a IP67 Rozměry: 258 (š) x 158 (h) x 52 (v) mm Hmotnost: 3 kg (vč. M/B) Disk: CF card / 1 x 2.5" HDD Provozní teplota: CF Card 60°C / HDD 50°C

PRODUKT JIŽ NENÍ URČEN K PRODEJI

Popis Fotogalerie

Popis

IP66 / IP67 waterproof solution is complete dustproof and waterproof. It is possible for continuous immersion in water for many hours (up to 1 meter of submersion). The waterproof system can be applied for various applications, such as Automation control, Transportation industry, Military use, Aquaculture industry, Oceanographic research, and Networking applications. IP67 waterproof solution features excellent heat-dissipating fanless design and is capable of supporting waterproof connectors with functions of VGA, USB, Serial Port and LAN.

.	IP66 and IP67 waterproof
.	Up to 1 meter of submersion
.	Fanless design
.	Flexible I/O funcion for rear panel
.	3G WI-FI Wireless networking capabilities
.	Wall mount kit or panel stand
.	Optional Rechargeable battery set

Applications

.	POS system for restaurant, kitchen or retail store
.	Outdoor information Kiosk
.	Transportation or traffic control
.	Automation control
.	Military industry
.	Underwater reserch equipment
.	Any application requires waterproof function

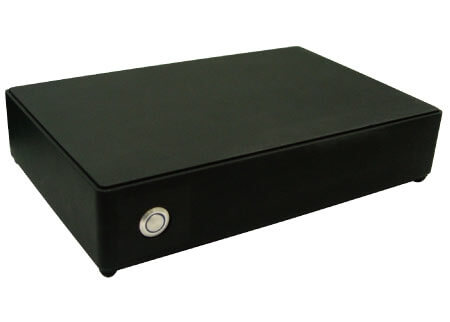

NEMO System

Certificate:


	. I/O Function	Up to 2 x Giga LAN

		Up to 7 x USB 2.0

		Up to 6 x COM

		HD Audio (Line-out / Mic-in / Line-in)

		WDT & GPIO (8DI/8DO)

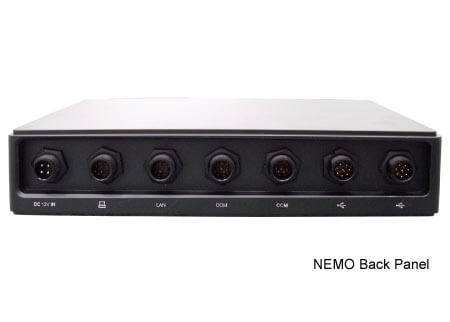

Standard Rear Panel configuration
Power / VGA / 1 x Giga LAN / 2 x COM ports / 2 x USB

	System Informatin
	. Motherboard	3I525HW

	. Waterproof standard	IP66 and IP67

	. Dimension	258 W x 158 D x 52H mm

	. Material	Aluminum

	. Weight	3 Kg ( Incl. M/B )

	. Storage Space	CF card / 1 x 2.5" HDD

	. Operation Temperature	CF Card 60°C / HDD 50°C
