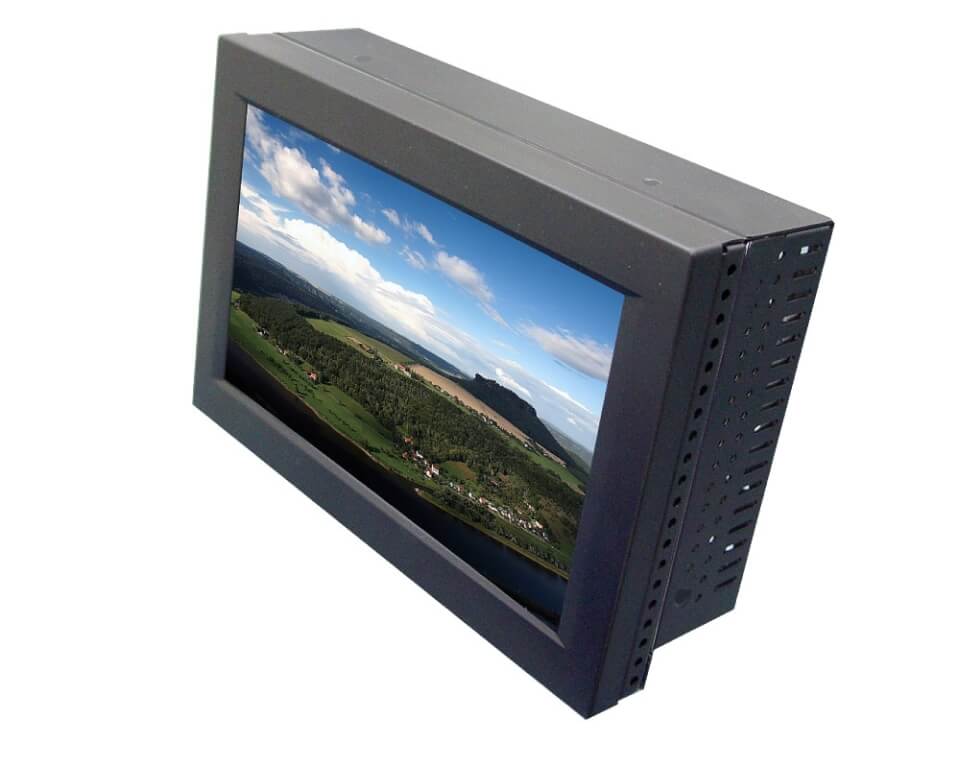

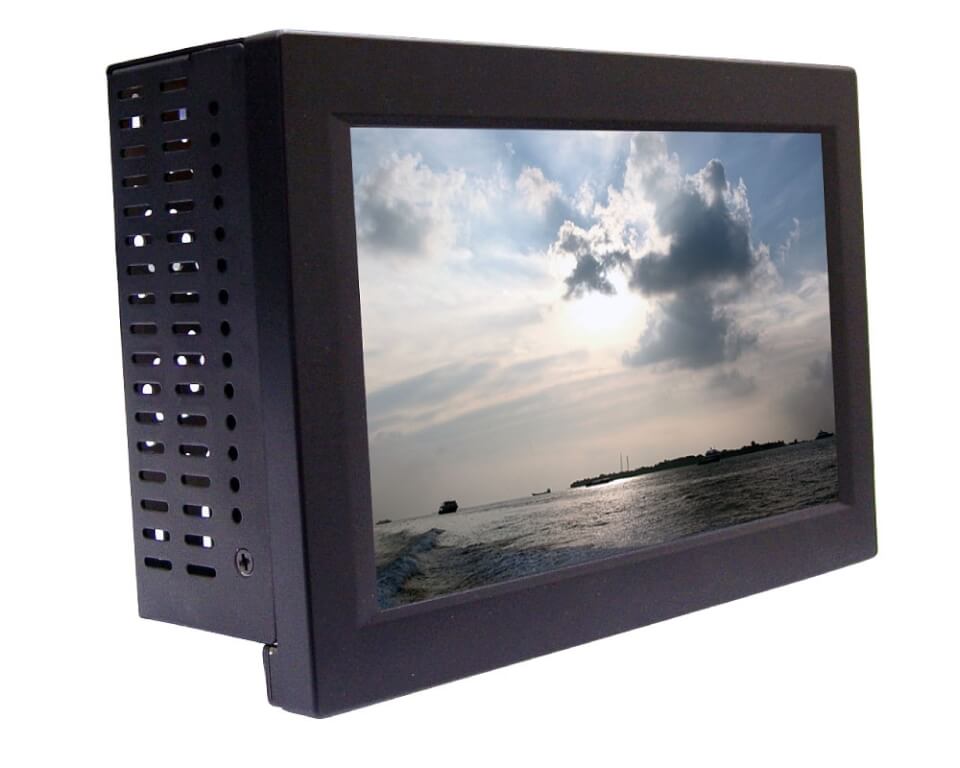

7" Fanless Panel PC

7" Fanless Panel PC - STG2552 s deskou 2I268C

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

Dostupné základní desky pro toto Panel PC:
CPU Type M/B Model VGA COM LAN USB Audio Others Operation Temp
CF Card HDD
Intel Cedarview-M
2I268C-D
- 1 1 2~5 Line out/
Mic-in
DVI, mSATA - 50°C

Volitelné funkce
Aluminum / Stainless Case 3G Wi-Fi GPS DC +6V to +36V
Bluetooth 1 ~ 4 Video-IN Optional LAN Speaker



Specifikace

MODEL 7" Fanless Panel PC
Panel PC Dimension 58 H x 189 W x 128 D mm
Case Dimensions 48 H x 189 W x 115 D mm
Front Panel Dimension 10 H x 189 W x 128 D mm
Weight 1.2 Kgs ( lncl. M/B )
Material Plastics front frame + Aluminum
Storage CF Card / 2.5" HDD
Operation Humidity 5 ~ 90% @ 39 °C, non-condensing

MODEL Panel PC Information
LCD Panel CPT
Resolution 1024 x 600
Brightness ( cd/m2 ) 250
Contrast Ratio 400 : 1
Backlight LED
Number of Colors 262144
Touch Screen 4 wires / Resistive touch screen
Mounting Spec. VESA 75
Panel frame water proof IP65
Accessory ( Option ) Wall Mount Kit / Stand
