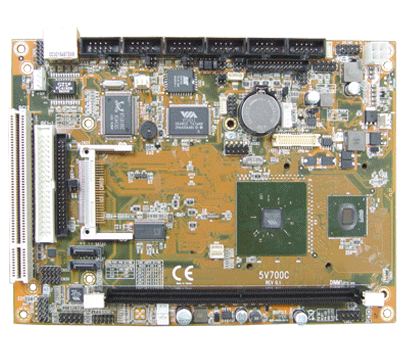

5V700C

Specifications
. CPU type:
   VIA V4 Eden / ULV or C7 Nano-BGA2 400 pin L1 128 KB,
   L2 128 KB on die
. Front Side Bus:
   400 / 533 MHz
. MB Chipset:
   VIA CX700M
. Graphics:
   Integrated with VIA CX700M
   Shared system memory up to 128MB
. Memory:
   1 x DDRII SDRAM (max. 1GB)
. CRT/HDTV:
   Supports all NTSC & PAL formats. Supports HDTV & SDTV.
   Supports CRT resolution : 1920 x 1440
   Supports TV resolution : 1920 x 1080i
. LVDS:
   Data format of 24 bits / 48 bits
. IDE:
   Ultra DMA-133 / 100 / 66. 1 x 40 pin 2.54mm, 1 x 44 pin 2.0mm.
   CF Card Type II for ATA interface
. LAN:
   1 x Realtek 10/100 Mbps (optional Realtek/Intel Gigabit)
   Intel 82541PI or Realtek RLT8100C/RLT8110SC LAN Chip
. IO function:
   4 ~ 6 x RS232 or 3 ~ 5 x RS232 + 1 x RS232 / 422 / 485
   IEEE 1284 Parallel port for SSP & EPP V1.7 / V1.9 & ECP mode
   Supports Infrared SIR & FIR
. Audio:
   Intel HD Audio. Supports SPDIF-Out
. USB:
   5 x USB 2.0 (internal)
. SATA:
   2 x SATA ports
. DIO & WDT:
   Hardware digital Input & Output, 8xDI / 8xDO
   Hardware Watch Dog Timer, 0~255 sec programmable
. Touch Screen (option):
   USB interface Touch screen controller
   Supports 4- , 5- , 8- wire Analog Resistive Touch screen
   USB 1.1 full speed sample rate maximum of 300 point / sec
. Audio Amplifier (option):
   6-W / CH Into an 8-Ω Load from a 12-V Supply
   Up to 92% Efficient, Class-D operation
   Differential Input minimizes Common-Mode noise
. Expand interface:
   1 x Mini PCI socket. 1 x PCI slot
   (with RS003 riser card upgrade to 2 x PCI card)
. Power:
   On board DC +12V ± 5% convert to +3.3V / +5V / +12V for system
. Dimension:
   203 x 146mm (5 1/4 inch)
. Operation Temp.:
   0 ~ 60°C
. Operation Humidity:
   5~95% @ 60°C, non-condensing
