17" Fanless Panel PC 4:3

Information Kiosk, POS, Mobile solution, Automation control Features • Fanless, Touch screen, Water Proof, Open-frame design, CCFL Backlight

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073 pchalupa@nowatron.cz

Dostupné základní desky pro toto Panel PC:

CPU Type

M/B Model

VGA

COM

LAN

USB

Audio

Others

Operation Temp

mSATA

HDD

Bay Trail E3815 / E3845

YES

HDMI

60°C

50°C

Intel Ivy Bridge Celeron, i3 / i7

Option

YES

DVI / HDMI

60°C

50°C

Fanless Panel PC
MODEL	17" Fanless Panel PC
Panel PC Dimension	79.5 H x 413 W x 343 D mm ( For Lex STD M/B ) 64.5 H x 413 W x 343 D mm ( For 3.5" M/B )
Case Dimension
(For Lex STD M/B )	71 H x 386.2 W x 316.4 D mm
( For 3.5" M/B )	56 H x 386.2 W x 316.4 D mm
Front Panel Dimension	8.5 H x 413 W x 343 D mm
Material	Plastics front frame + Aluminum
Weight	4.8 Kg ( Incl. M/B )
Storage Space	2.5" HDD
Operation Humidity	5 ~ 90% @ 39 °C, non-condensing

Panel PC Information
LCD Panel	AUO
Resolution	SXGA 1280 x 1024
Brightness (cd/m2)	350
Contrast Ratio	1000 : 1
Backlight	CCFL
Number of Colors	16.7 M
Touch Screen	AMT 8 wires / Resistive touch screen
Mounting Spec.	VESA 75 / 100
Panel frame water proof	IP65

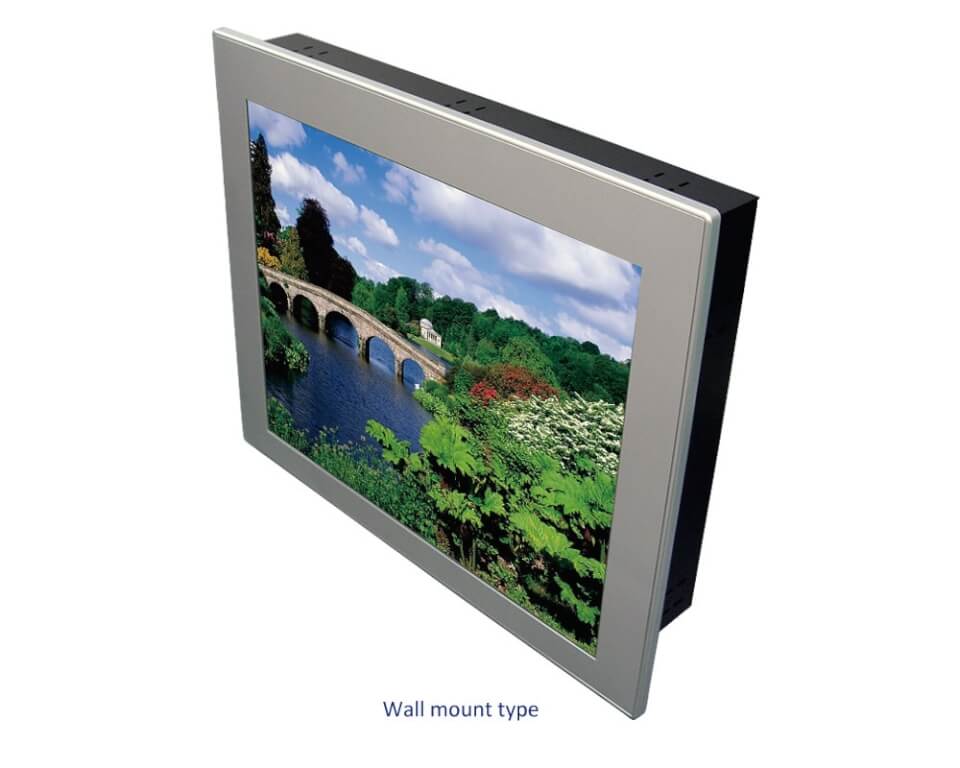

Accessory (Option)	Wall Mount Kit / Stand
