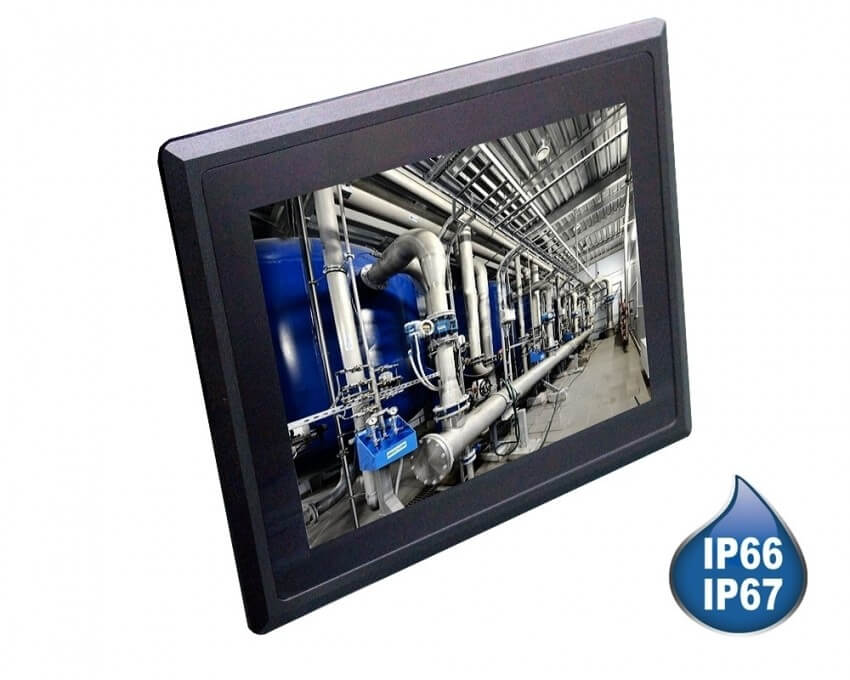

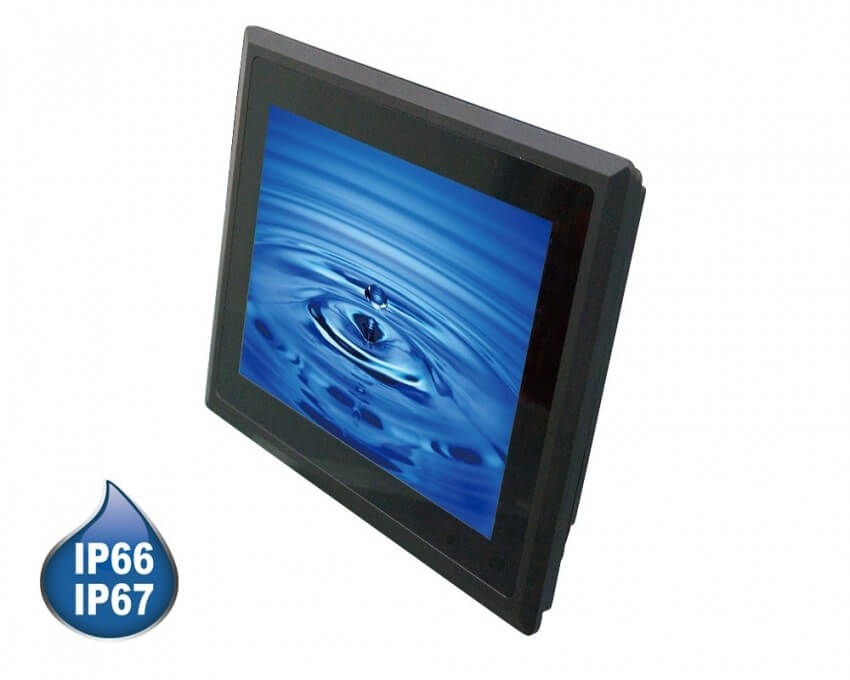

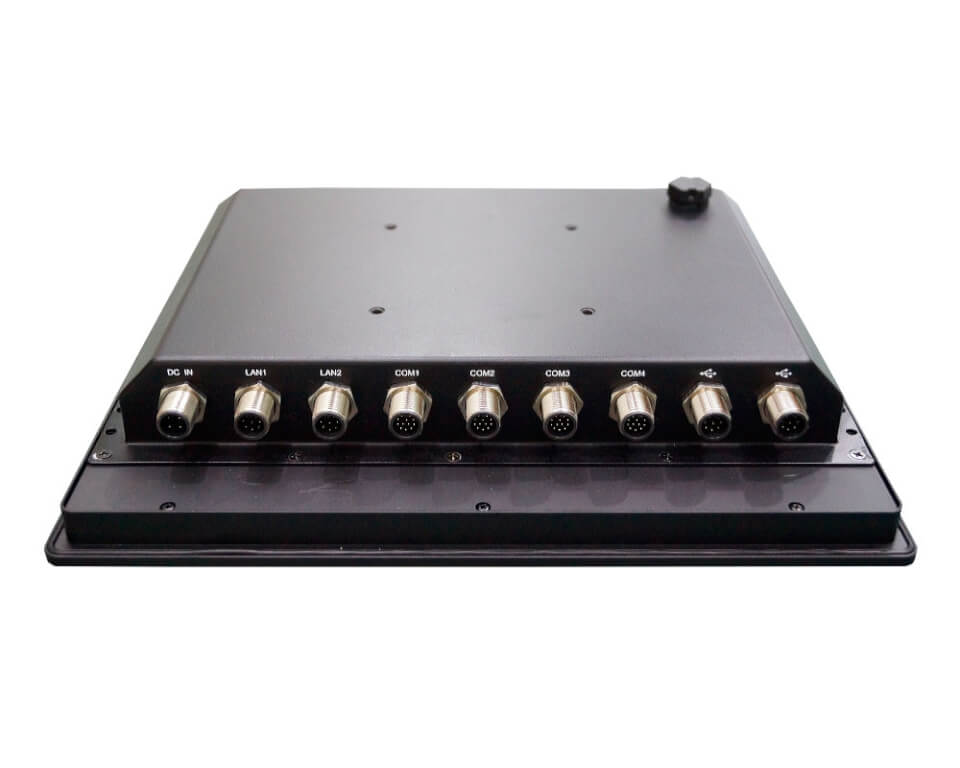

15.1" STAR Bezel-free Waterproof Panel PC

15.1" STAR Bezel-free Waterproof Panel PC s deskou 2I385HW

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Specifikace

MODEL 15.1" + 2I385HW
Dimension (mm) 385W x 55.9 H x 317.5D
Weight 4 Kg
Hard drive 2.5" HDD
LCD brand AUO
LCD size 15 inch, 4:3
Max Resolution 1024 x 768
Luminance (cd/m2) 400
Contrast Ratio 700:1
Viewing Angle (H-V) 60(U), 80(D), 80(R) , 80(L)
Backlight LED
Touch Screen Resistive touch screen
MB 2I385HW
CPU
Intel Bay Trail-I E3845 1.91 GHz (Quad Core)
Chipset
Memory Type / Capacity E3845 DDR3L 1333MT/s
SO-DIMM N/A
On board memory 2/4 GB
SSD Storage CF (CFast) N/A
mSATA Yes
On Board SSD N/A
VGA Yes
DVI / HDMI N/A
USB 5
COM 4
MiniPCIe 2
SIM Card Holder N/A
GPIO 4DI/4DO (Optional)
Ethernet Intel GbE x 2
Audio Line-out / Mic-in (Optional)
Power Input Wide Range +9~36V
Battery option (3500~10500mAh)
Mounting VESA 75 & Panel Mount
Panel frame water proof IP65 / IP66
Expansion GPS, 3G/4G, Bluetooth, WI-FI, I/O, Video Card, PoE
Operating Temp. -20°C~60°C for mSATA / SSD HDD
Operating Humidity 5~90% @ 39°C, non-condensing
