13.3" SHARK

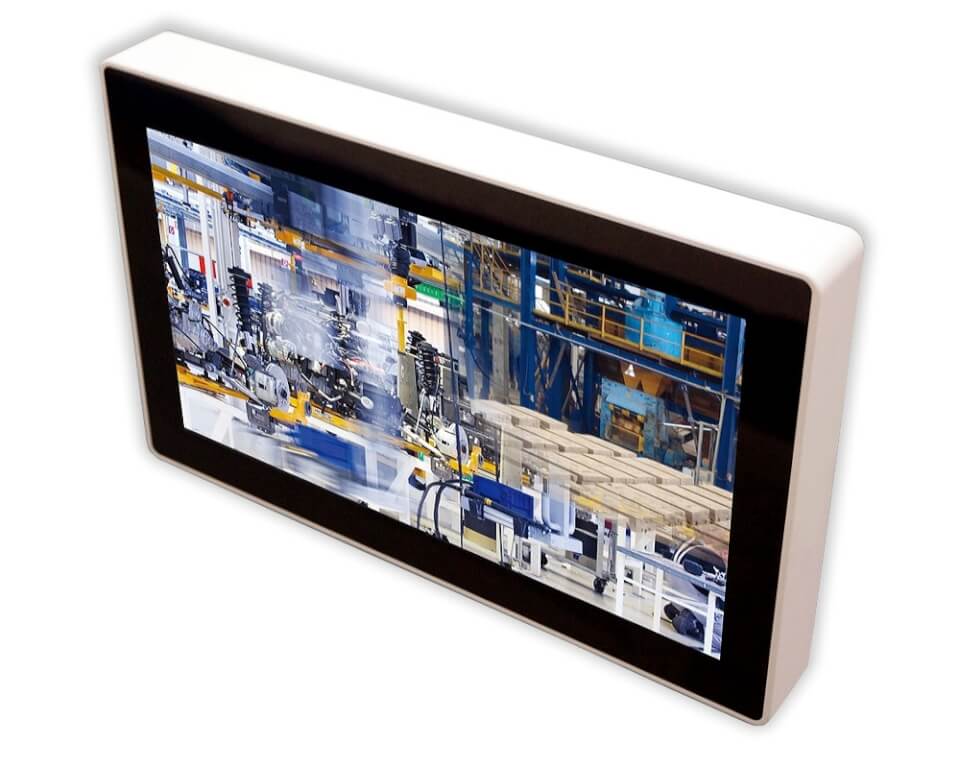

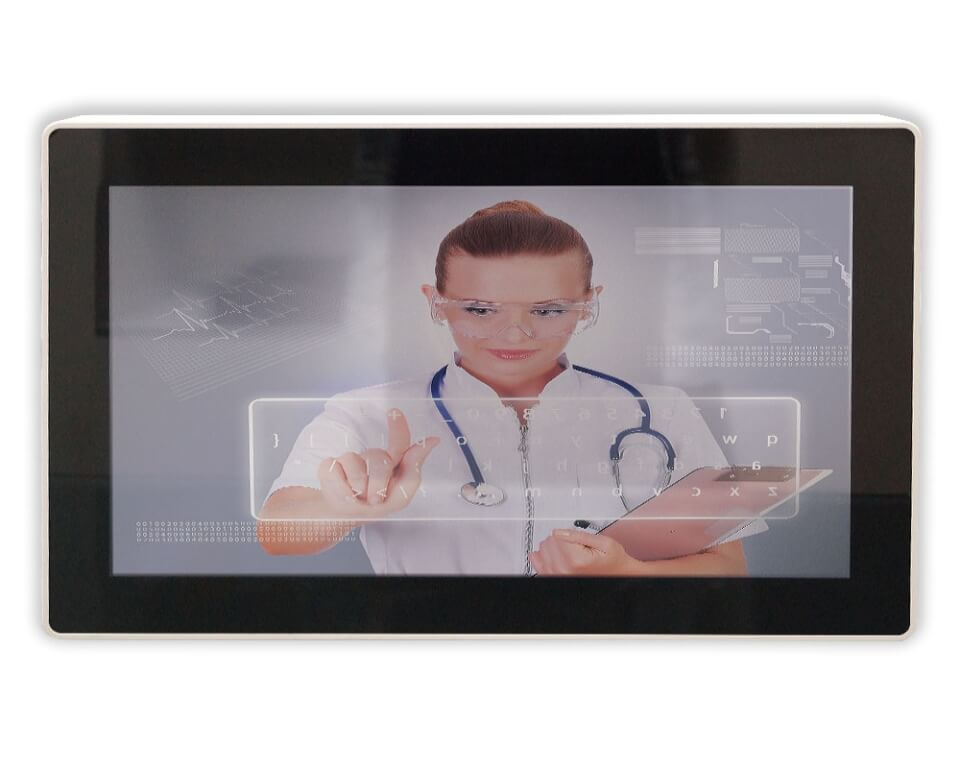

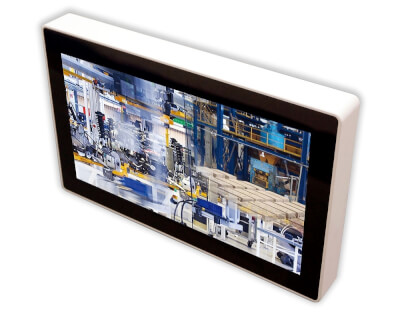

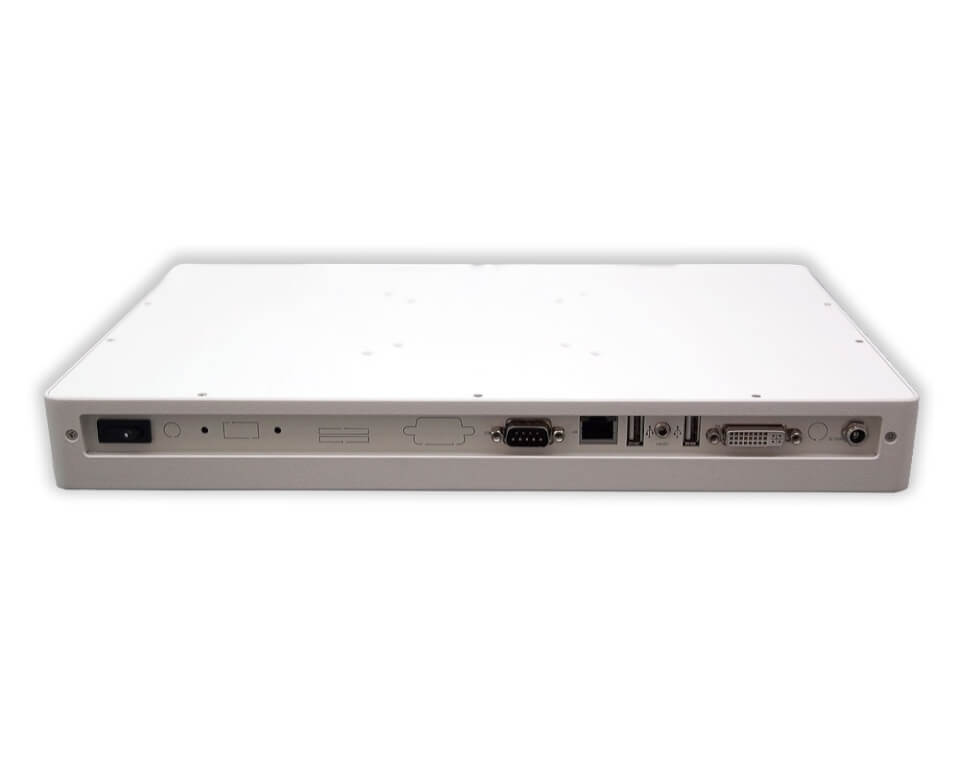

13.3" SHARK Bezel-free Fanless Panel PC
Základní informace
Dostupné základní desky:
| MB Type | CPU onboard | Memory support |
USB | Serial | LAN | Resolution | Exp. | Storage support |
| 2I268C-DH26 | N2600 1.6GHz | 2GB onboard | 2 | 1 | 1 x Giga | 1366 x 768 | 2 mini-card | mSATA |
| 2I385CW-I44 | E3845 1.91GHz | 4GB onboard | 2 | 1 | 2 x Giga | 1366 x 768 | 2 mini-card | mSATA |
Specifikace
| MODEL | 13.3" + 2I268C | |
| Dimension (mm) | 349.2W x 40H x 220.8D mm | |
| Weight | 2.7 Kg | |
| Hard drive | 2.5" HDD | |
| LCD brand | CHIMEI | |
| LCD size | 13.3 inch, 16:9 | |
| Max Resolution | WSVGA 1366 × 768 | |
| Luminance (cd/m2) | 200 | |
| Contrast Ratio | 500:1 | |
| Viewing Angle (H-V) | 45/45/20/45 CR≥10 (L/R/U/D) | |
| Backlight | LED | |
| Touch Screen | Resistive touch screen | |
| MB | 2I268C-DVI | |
| CPU | Intel Cedarview-M N2600/N2800 1.6/1.86 GHz | |
| Chipset | Intel Cedarview-M + NM 10 | |
| Memory | Type / Capacity | DDR3 800 MT/s for N2600, Max up to 2GB
DDR3 1066 MT/s for N2800, Max up to 4GB |
| SO-DIMM | N/A | |
| On board memory | 2GB | |
| SSD Storage | CF (CFast) | N/A |
| mSATA | Yes (Half Size) | |
| On Board SSD | Optional | |
| VGA | Optional | |
| DVI / HDMI | DVI | |
| USB | Built-in 2 x USB, expand up to 5 x USB | |
| COM | Built-in 1 x COM, expand up to 2 x COM | |
| MiniPCIe | 2 | |
| SIM Card Holder | 2 | |
| GPIO | 4DI / 4DO (Optional) | |
| Ethernet | 1 x Realtek GbE | |
| Audio | Line-out | |
| Power Input | DC IN +12V | |
| Battery | option (3500~10500mAh) | |
| Mounting | VESA 75/100 | |
| Panel frame water proof | IP65 | |
| Optional MB | 2I385CW | |
| Expansion | GPS, 3G/4G, Bluetooth, WI-FI, I/O | |
| Operating Temp. | -20°C~60°C for mSATA | |
| Operating Humidity | 5~90% @ 39°C, non-condensing | |
