10.2" Fanless Panel PC

Information Kiosk, POS, Mobile solution, Automation control Features: Fanless, Touch screen, Water Proof, Open-frame design, LCD Backlight Panel

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

Dostupné základní desky pro toto Panel PC:
CPU Type M/B Model VGA COM LAN USB Audio Operation Temp
mSATA Card HDD
Intel Bay Trail-I
2I385CW
1 4 2 4 YES 55°C 50°C
Intel Bay Trail-I

3I380CW
1 4 2 2 YES 55°C 50°C
VIA Nano 1GHz

3V900C
1 3 1 2 YES 50°C 50°C

More Functions
Aluminum / Stainless Case 3G / 4G Wi-Fi GPS
DC +9V to +36V Webcam Speaker Bluetooth

Specifikace

anless Panel PC
MODEL 10.2" Fanless Panel PC

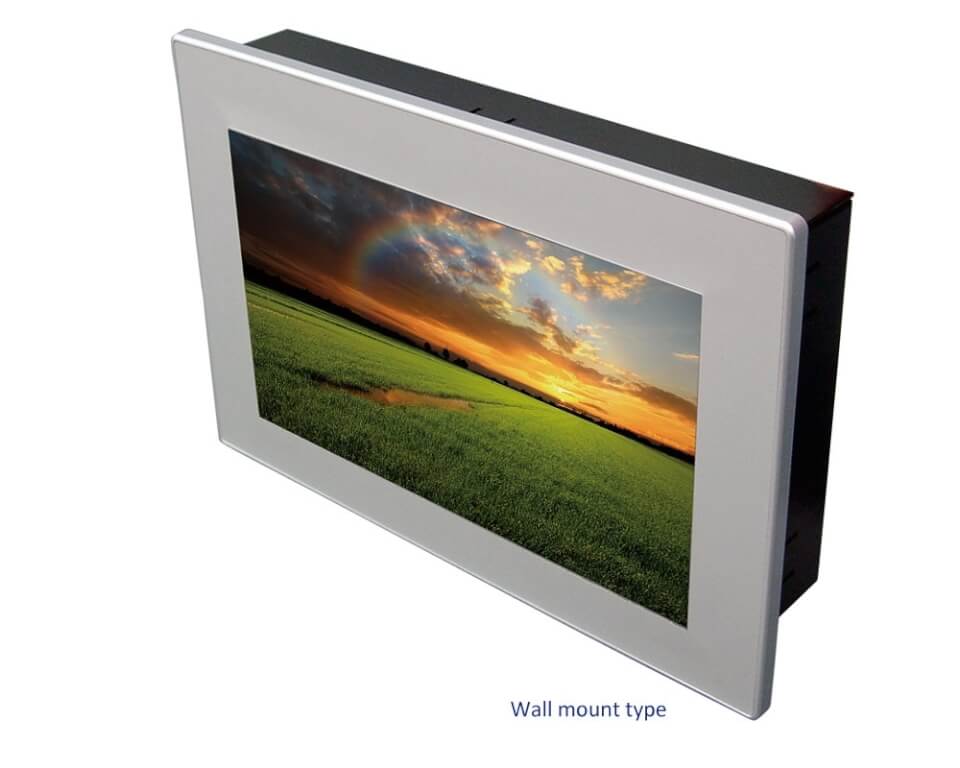

Panel PC Dimension 53 H x 286 W x 190 D mm ( Wall mount type )

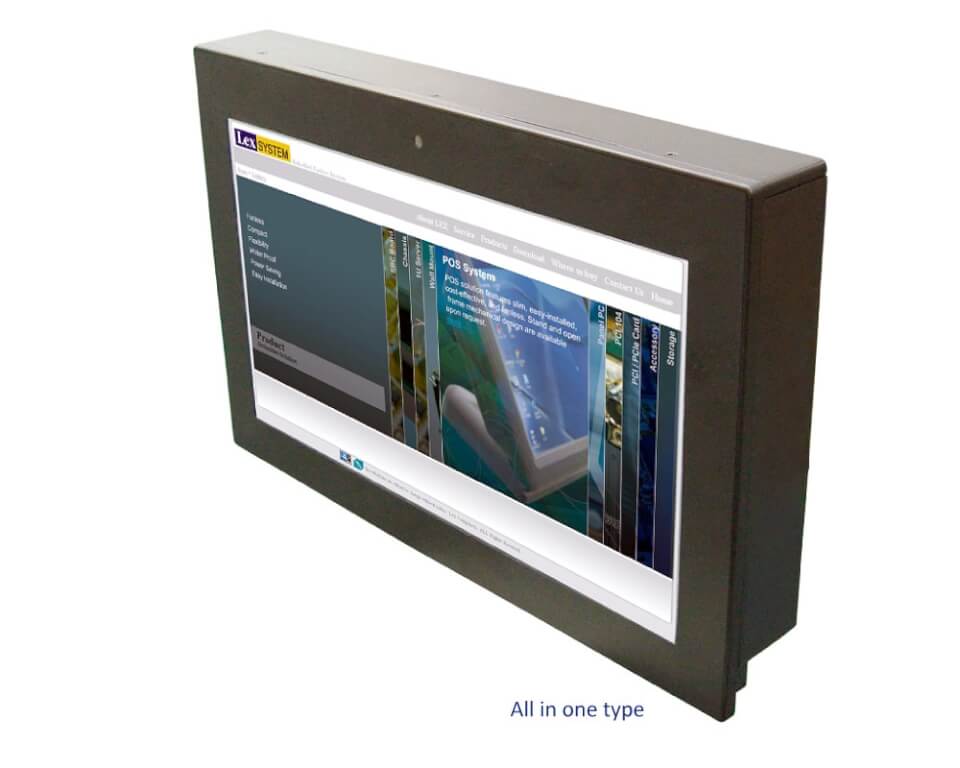

60 H x 286 W x 190 D mm ( All in one type )
Case Dimensions 45.5 H x 265.4 W x 167.7 D mm ( Wall mount type )
52.5 H x 286 W x 177.9 D mm ( All in one type )
Front Panel Dimension 7.5 H x 286 W x 190 D mm
Material Plastics front frame + Aluminum
Weight 1.3 Kg ( Incl. M/B )
Storage Space 2.5" HDD
Operation Humidity 5 ~ 90% @ 39 °C, non-condensing

Panel PC Information
LCD Panel CPT
Resolution WSVGA 1024 x 600
Brightness ( cd/m2 ) 220
Contrast Ratio 400 : 1
Backlight LED
Number of Colors 262144
Touch Screen TTI 4 wires / Resistive touch screen
Mounting Spec. VESA 75 / 100
Panel frame water proof IP65
Webcam ( Option ) 5.0 Mega pixel - auto focus
Accessory ( Option ) Wall Mount Kit / Stand
