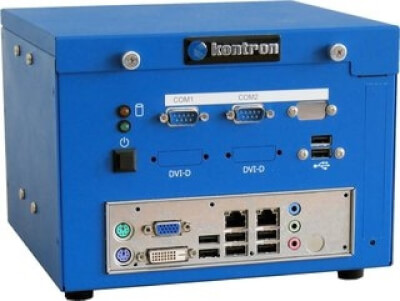

KIM KT690 Mini ITX

Kontron's KIM wall mount / desktop PCs can be used in numerous applications such as: Medical, Gaming, Process Control and Embedded Applications. The KIM box PC has been specifically designed for use within light industrial environments and supports up to Core 2 Duo processors. On board graphics that provide precise 3D pictures, vast array of I/O options; 3 x LAN, 6 x USB, 4 x COM, ensures that the KIM chassis provides the connectivity that your application requires. Long term availability, easy maintenance and serviceability protect your investment. Based upon Kontron´s Mini ITX board,KT690, the KIM offers flexible and scalable configurations.


Vlastnosti

CPU	AMD Turion64™ dual core / AMD Sempron CPU
Chipset	AMD M690T + SB600 Embedded Chipset
Approvals	CE
Connectivity	Front: 8* USB 2.0 , 2* RS232,1* VGA, 1* DVI, 2* LAN 10/100/1000, Audio,PS/2 M+K
Cooling	CPU passive cooled, Powersupply fan
Dimensions (H x W x D)	153mm x 214mm x 196mm
Drives	1* 3,5 bay internal
Free Slots	1*PCI 32 Bit 33MHz
Front Side Bus	N/A
Main Memory	Up to 4 GB
Power Supply	AC wide range 300W, 24 VDC ( 12V-24V)
Temperature	Operating 0-50 Degrees/C
Verified OS	WINXP, LINUX
Weight	~ 4kg
