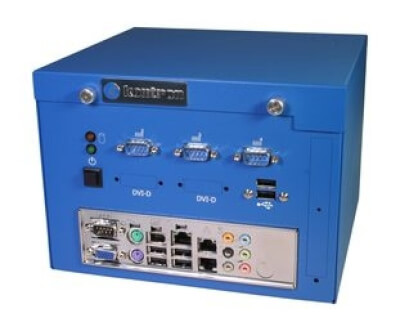

KIM 986LCD Mini ITX

Kontron's KIM wall mount / desktop PCs can be used in numerous applications such as; Medical, Gaming, Process Control and Embedded Applications. The KIM box PC has been specifically designed for use within light industrial environments and supports up to Core 2 Duo processors. On board graphics that provide precise 3D pictures, vast array of I/O options; 3 x LAN, 6 x USB, 4 x COM, ensures that the KIM chassis provides the connectivity that your application requires. Long term availability, easy maintenance and serviceability protect your investment. Based upon Kontron´s Mini ITX board, the 986, the KIM offers flexible and scalable configurations.


Vlastnosti

CPU	Intel Core Duo , Intel Core 2 Duo
Chipset	Intel 945GM + Intel® ICH7R
Approvals	CE
Connectivity	Front: 6* USB 2.0, 3* GB LAN, 4* RS232,PS/2 M+K,VGA,Line in, Line out,1*Firewire, optional 2* DVI
Cooling	CPU passive cooled, Powersupply fan
Dimensions (H x W x D)	153mm x 214mm x 196mm
Drives	1* 3,5 bay internal
Free Slots	1* PCI 32 Bit 33 MHz half size, 1 * PEG for ADD cards
Front Side Bus	533/800 MHz
Main Memory	up to 4 GB DDR 2
Power Supply	AC wide range 300W, 24 VDC ( 12V-24V)
Temperature	Operating 0-50 Degrees/C
Verified OS	WINXP, VISTA, LINUX
Weight	~ 4kg
