K7 - 8 Safe Digital Outputs, Low-Side Switching for menTCS

SIL 2 to SIL 4 Modular Train Control System I/O Board

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • 8 digital outputs, 24 V, 48 V, 72 V, 96 V, 110 V
  • 300 mA per channel, 1200 mA total
  • Low-side switch outputs (load to supply voltage)
  • Optical isolation from other cards
  • Fail-safe board architecture
  • Currently in certification process with TÜV SÜD
  • Developed acc. to EN 50129, EN 50128, IEC 61508
  • Extensive supervision functions
  • EN 50155 fully compliant
  • -40°C to +85°C
  • Conformal coating

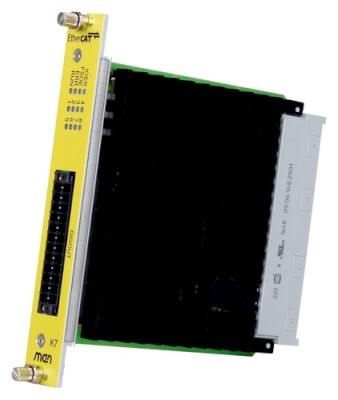

The K7 is a safe digital output card for the modular Train Control System (menTCS) focusing on SIL 1, SIL 2, SIL 3 and SIL 4 applications in rolling stock.
