K1 - 8 Safe Digital Outputs, High-Side Switching for menTCS

• 8 digital outputs, 24 V, 48 V, 72 V, 96 V, 110 V
• 300 mA per channel, 1200 mA total
• High-side switch outputs (load to ground)
• Optical isolation from other cards
• Fail-safe board architecture
• Currently in certification process with TÜV SÜD
• Developed acc. to EN 50129, EN 50128, IEC 61508
• Extensive supervision functions
• EN 50155 fully compliant
• -40°C to +85°C
• Conformal coating

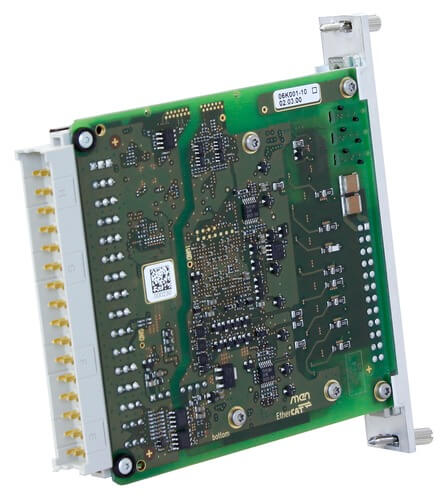

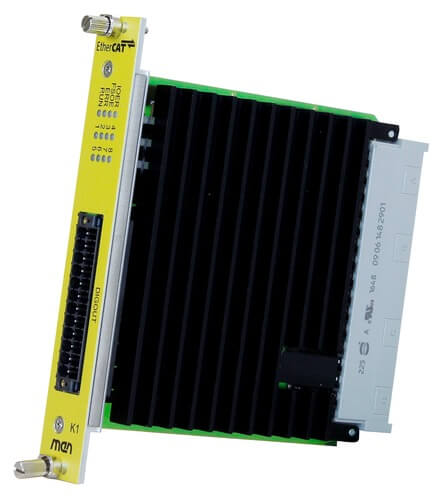

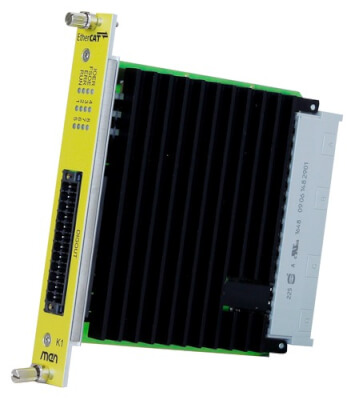

The K1 is a safe digital output card for the modular Train Control System (menTCS) focusing on SIL 1, SIL 2, SIL 3 and SIL 4 applications in rolling stock.
