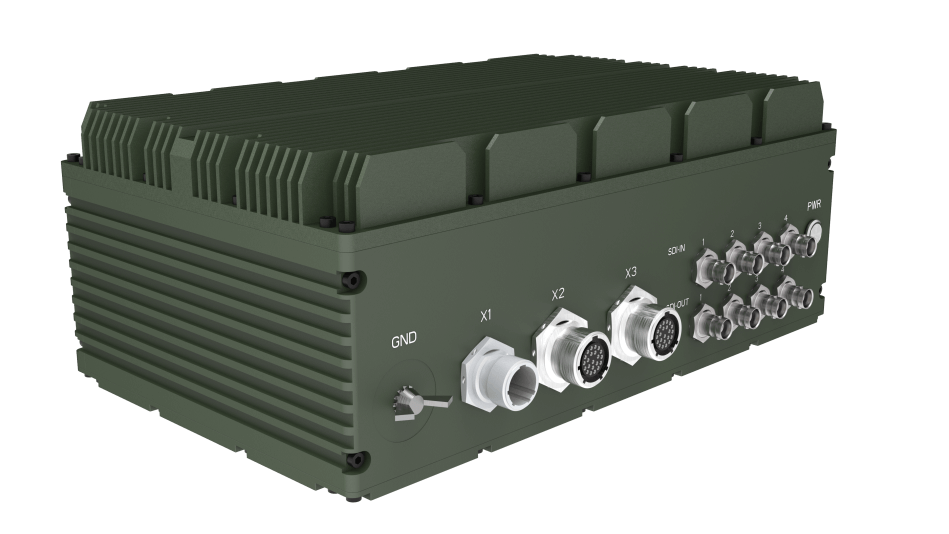

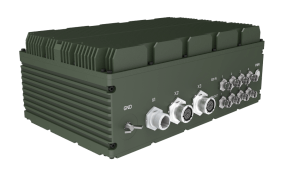

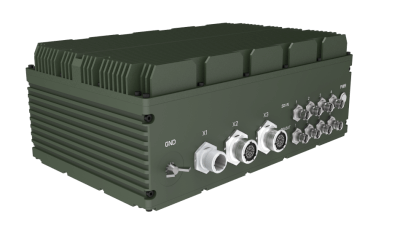

IV320-MH

4CH SDI-IN/4CH SDI-OUT NVIDIA A2000 GPU PC s procesorem Intel® Ultra 7-155H

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Popis

  • 8 x Channel 3G-SDI Frame Grabber (4 input / 4 output)
  • Intel® 14th Gen. Meteor Lake-H, Ultra 7 155H, 16C, 22T, 4.8 GHz
  • 2 x DDR5 DIMMs Up to 96GB SO-DIMM 5600MHz
  • NVIDIA® Quadro MXM A2000 (8GB GDDR6, 2,560 CUDA)
  • Rugged waterproof D38999/BNC connectors
  • Extended Operating Temperature -20°C to +60°C
  • Wide range 18V~36V DC-IN
  • Options for 2xCAN,2xCOM(RS232/422/485)
  • Special Request :8xCH SDI-Input/IP66

Specifikace

Processor Intel® 14th Gen. Meteor Lake-H Ultra 7 155H 16C, 22T, 2.5/4.8GHz, 24M Cache, TDP 28W
Memory type 2 x DDR5 DIMMs Up to 96GB SO-DIMM 5600MHz
GPU Nvidia Ampere MXM A2000 (8GB GDDR6, 2560 CUDA)
Graphics Processor Intel® Arc™ Graphics
HDD/SSD Up to 2x SATAIII SSD ( 2 x 4TB )

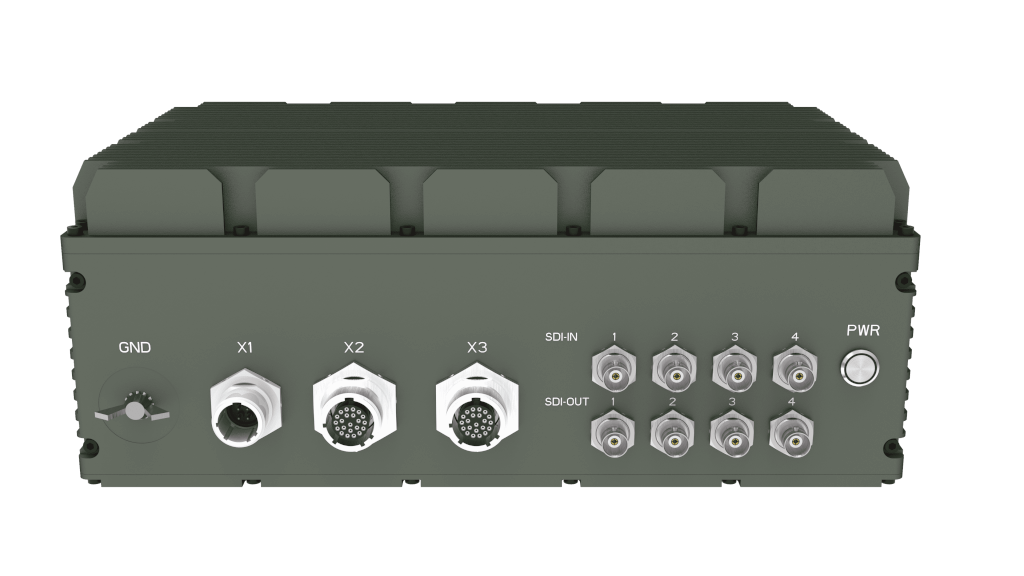

Front I/O X1: 1 x DC-IN 18~36V with D38999 connector
X2: 2 x GbE with D38999 connector
X3: 2 x USB2.0 with D38999 connector
3D-SDI Input: 4 x 3G-SDI with BNC Connector
3D-SDI Output: 4 x 3G-SDI with BNC Connector (Convert by HDMI)
GND: 1 x GND
Power Button: 1 x Power Button w/Indicator LED
OS Windows 10/ 11 64 bit Enterprise, Linux by request
Power Requirement 18V~36V DC-IN
Dimension 310 x 190 x 120 mm ( W x D x H )
Ingress Protection IP65
Operating Temp. -20°C to 60°C
Storage Temp. -40°C to 85°C
Relative Humidity 5% to 95%, non-condensing
System Design Conduction Cooing
