USB-EDC (Vertical, D Type)

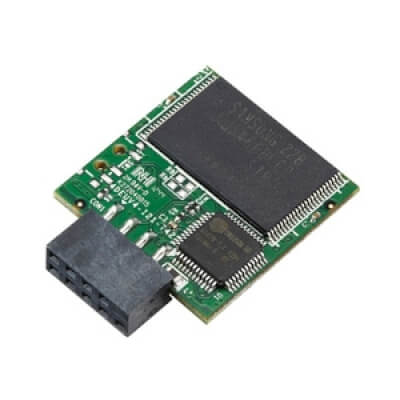

The Innodisk vertical USB-EDC (Embedded Disk Card) is a high-performance, fast data transmission USB flash storage solution with NAND flash architecture. With its small form factor, it is an excellent choice for applications where device size and mechanic
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Základní informace
Features:
•MTBF: 3 million hours
•Auto error correction code (ECC): 8 bits/ per 528 byte
•Intelligent error recovery system
•Excellent data transfer speed
•Static wear-leveling algorithm support
•With Pin Pitch: 2.54 mm
•Enhanced power cycling
Benefits:
The Innodisk USB-EDC (vertical, D Type) provides an excellent choice for the design of smaller, sleeker devices.
•Supports static wear-leveling
•Consumes less power
•Enhanced power cycling
Specifikace
| Model Name | USB-EDC (Vertical, D Type) |
| Interface | USB 2.0 |
| Type | Vertical |
| Flash Type | SLC |
| Connector | Standard, 10pin, 2.54mm |
| Capacity | 512MB~4GB |
| Max. Channels | 2 |
| Sequential R/W (MB/sec, max.) | 32/20 |
| Max. Power consumption | 0.6W (5V x 120mA) |
| H/W Write Protect | Optional |
| Dimension (WxLxH/mm) | 24 x 31.8 x 5.0 |
| Vibration | 5G@7~2000Hz |
| Shock | 50G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature | Standard Grade: 0°C ~ +70°C; |
| Industrial Grade. OP: -40°C ~ +85°C |
