USB EDC Vertical 2ME

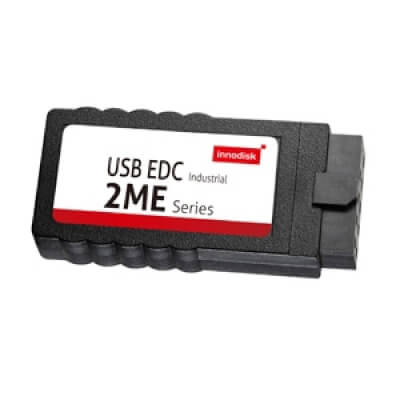

The Innodisk USB EDC (Embedded Disk Card) product

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • Cost-effective MLC
  • Excelent data transfer speed
  • Wear-leveling supported
  • Low power consumption
  • Pin pitch 2.54mm

The Innodisk USB EDC (Embedded Disk Card) products provide high capacity USB flash memory storage that electrically complies with High-speed USB 2.0 interface & backward compatible with USB 1.1. The device features attractive small form factor and the connectivity over USB2.0 and the NAND flash architecture provide a faster data transmission.


Interface USB 2.0
Flash Type MLC
Type Vertical
Capacity 4GB~32GB
Max. Channels 1
Sequential R/W (MB/sec, max.) 25/17
Max. Power Consumption 0.85 W (5V X 170mA)
H/W Write Protect N
S.M.A.R.T. Y
Dimension (WxLxH/mm) 15.2 x 34.1 x 6.4
Vibration 5G@7~2000Hz
Shock 50G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C;
Industrial Grade: -40°C ~ +85°C
