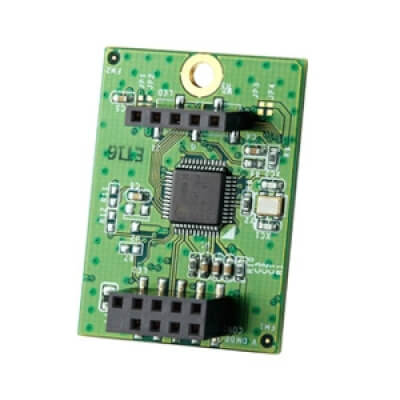

USB-EDC (Horizontal, C Type)

The Innodisk horizontal USB-EDC (Embedded Disk Card) is a high-performance, fast data transmission USB flash storage solution with NAND flash architecture. With its small form factor, it is an excellent choice for applications where device size and mechan

PRODUKT JIŽ NENÍ URČEN K PRODEJI

Základní informace

Features:
 •MTBF: 3 million hours
 •Auto error correction code (ECC): 8 bits/ per 528 byte
 •Intelligent error recovery system
 •Excellent data transfer speed
 •Static wear-leveling algorithm support
 •Designed with mounting hole
 •With Pin Pitch: 2.54 mm
 •Enhanced shock & vibration

Benefits:
The Innodisk USB-EDC (horizontal, F Type) provides an excellent choice for the design of smaller, sleeker devices.
 •Supports static wear-leveling
 •Consumes less power
 •Enhanced shock & vibration

Specifikace

Availability

Model Name USB-EDC (Horizontal, C Type)
Interface USB 2.0
Type Horizontal
Flash Type SLC
Connector Standard, 10pin, 2.54mm
Capacity 512MB~4GB
Max. Channels 2
Sequential R/W (MB/sec, max.) 32/20
Max. Power consumption 0.6W (5V x 120mA)
H/W Write Protect Optional
Dimension (WxLxH/mm) 26.6 x 36.9 x 9.6
Vibration 5G@7~2000Hz
Shock 50G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C;
  Industrial Grade. OP: -40°C ~ +85°C
