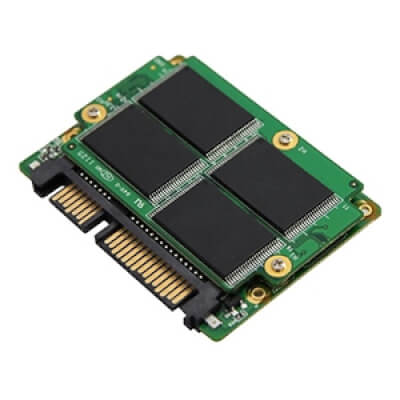

SATA Slim J200

The SATA Slim J200 offers high performance and high capacity in a tiny form factor. It is lightweight and extremely useful for embedded systems inside hand-held devices, such as tablets. Compliant with JEDEC MO-297 standards and operating under SATA II (3

PRODUKT JIŽ NENÍ URČEN K PRODEJI

Základní informace

Features

 •High capacity
 •S.M.A.R.T / iSMART disk health monitoring tool
 •Excellent data transfer speed
 •Built-in BCH error correction code
 •Bad block management

The Innodisk SATA Slim J200 provides manufacturers with a great replacement choice for hard disk drives (HDDs).
 •Reduces operation system boot time
 •Consumes less power than an HDD
 •No additional drivers are required
 •Can be configured as a boot device or data storage device

Specifikace

Availability

Model Name SATA Slim J200
Interface SATA II 3.0Gb/s
Type Standard
Flash Type SLC
Connector 7pin+15pin
Capacity 8GB~64GB
Max. Channels 8
Sequential R/W (MB/sec, max.) 220/180
Max. Power consumption 1.75W (5V x 350mA)
Thermal Sensor Y
External DRAM Buffer Y
H/W Write Protect N
ATA Security Y
S.M.A.R.T. Y
Conformal Coating N
Dimension (WxLxH/mm) 54.0 x 39.8 x 6.8
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C;
  Industrial Grade. OP: -40°C ~ +85°C
