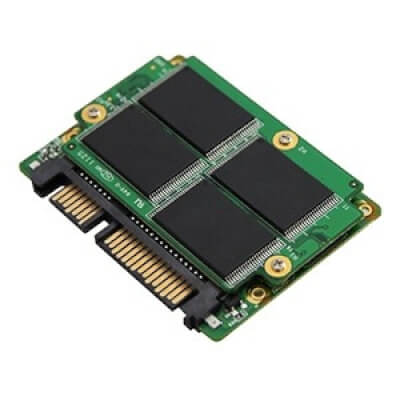

SATA Slim 2MR

The SATA Slim 2MR offers high performance and high capacity in a tiny form factor. It comes with several data security functions, including SEraser, QEraser, Destroy, and Write Protect. Compliant with JEDEC MO-297 standards and operating under SATA II (3.

PRODUKT JIŽ NENÍ URČEN K PRODEJI

Základní informace

Features
​ •Compliant with MIL-STD-810-F/G
 •Data Security
 •Excellent data transfer speed
 •Conformal coating (Optional)

Benefits:
The Innodisk’s SATA Slim 2MR guarantees maximum protection in harsh environments and continuously stores data safely and securely.
 •Erases 128GB of data in seven seconds
 •Resists shock and vibration
 •Stays within temperature limits
 •Flushes all buffer data to the flash chip before total power loss

Specifikace

Availability

Model Name SATA Slim 2MR
Interface SATA II 3.0Gb/s
Type Standard
Flash Type MLC
Connector 7pin+15pin
Capacity 32GB~ 256GB
Max. Channels 8
Sequential R/W (MB/sec, max.) 190/120
Max. Power consumption 2.6W (5V x 520mA)
Thermal Sensor Y
External DRAM Buffer Y
H/W Write Protect N
ATA Security Y
S.M.A.R.T. Y
Conformal Coating Optional
Dimension (WxLxH/mm) 54 .0x 39.8 x 6.8
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C;
  Industrial Grade. OP: -40°C ~ +85°C
