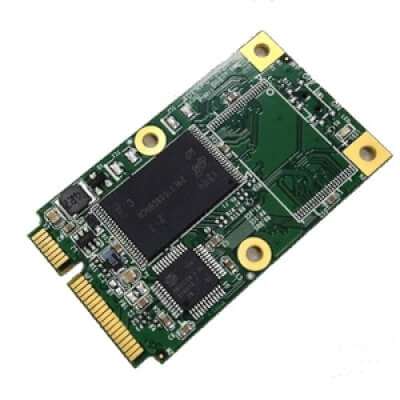

MiniDOM-U 2ME
The Innodisk MiniDOM-U product provides high capacity Mini PCIe memory storage with USB interface, which electrically complies with High-speed USB 2.0 interface & backward compatible with USB 1.1. The device features attractive small form factor and the c
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Základní informace
Features:
Cost-effective MLC
Work on mini PCIe interface with USB signal
Wear-leveling supported
Low power consumption
Specifikace
| Availability | |
| Model Name | MiniDOM-U 2ME |
| Interface | SATA II 3.0Gb/s |
| Type | Standard |
| Flash Type | MLC |
| Connector | 52pin (mini PCIe) |
| Capacity | 4GB~32GB |
| Max. Channels | 1 |
| Sequential R/W (MB/sec, max.) | 28/13 |
| Max. Power consumption | 0.74 W (3.3V X 225mA) |
| H/W Write Protect | Optional |
| Dimension (WxLxH/mm) | 29.85 x 50.8 x 3.3 mm |
| Vibration | 5G@7~2000Hz |
| Shock | 50G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature | Standard Grade: 0°C ~ +70°C
|
