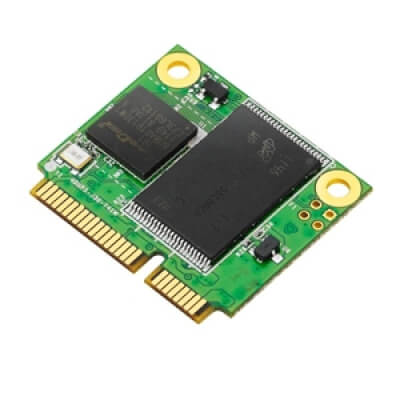

InnoLite mSATA mini D150Q

Innodisk’s InnoLite mSATA mini D150Q is designed in a half mini PCIe form factor with a SATA interface. This unique combination provides fast data transfer rate performance and allows for effective integration in small form factor applications, such as ki

PRODUKT JIŽ NENÍ URČEN K PRODEJI

Základní informace

Features:
​ •Static wear leveling algorithm support
 •S.M.A.R.T / iSMART disk health monitoring tool
 •Intelligent error recovery system
 •Excellent data transfer speed

Benefits:
The Innodisk InnoLite mSATA mini D150Q provides manufacturers with a cost-effective MLC NAND flash replacement solution for hard disk drives (HDDs).
 •Reduces operation system boot time
 •Consumes less power than an HDD
 •Can be configured as a boot device or data storage device

Specifikace

Availability

Model Name InnoLite mSATA mini D150Q
Interface SATA II 3.0Gb/s
Type Standard
Flash Type MLC
Pin Definition mSATA
Capacity 4GB~64GB
Max. Channels 2
Sequential R/W (MB/sec, max.) 65/21
Max. Power consumption 0.8W (3.3V x 240mA)
Thermal Sensor N
External DRAM Buffer N
H/W Write Protect N
ATA Security Y
S.M.A.R.T. Y
Conformal Coating N
Dimension (WxLxH/mm) 29.8 x 26.8 x 3.5
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C;
  Extended Grade: -20°C ~ +85°C
