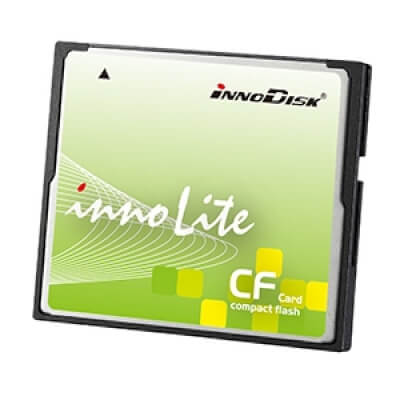

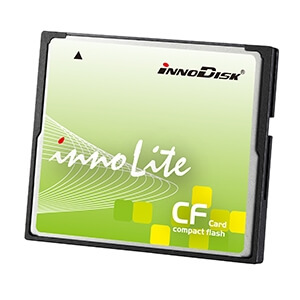

InnoLite iCF

The InnoLite iCF is a unique form factor that brings together different interfaces, such as 2.5" SATA SSD, SATA module, CF, and EDC. It is a cost-efficient, reliable flash solution, designed to replace traditional rotating disk drives. Compliant electrica

PRODUKT JIŽ NENÍ URČEN K PRODEJI

Základní informace

Features:
​ •Static wear-leveling algorithm support
 •Auto error correction code (ECC)
 •Auto stand-by and sleep mode
 •Write protection security

Benefits:
The Innodisk InnoLite iCF (MLC-based flash) provides manufacturers with a cost-efficient replacement for traditional rotating disk drives, with performance comparable to SLC-based flash.
 •Passed serial comprehensive reliability tests
 •Can be customized to fit specific needs

Specifikace

Availability

Model Name InnoLite iCF
Interface PATA
Type Standard
Flash Type MLC
Connector 50pin CF connector
Capacity 4GB~128GB
Max. Channels 2
Sequential R/W (MB/sec, max.) 40/15
Max. Power consumption 0.75W(5V x 150mA)/0.5W(3.3V x 150mA)
H/W Write Protect Y
ATA Security Y
S.M.A.R.T. Y
Dimension (WxLxH/mm) 42.8 x 36.4 x 3.3
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C;
  Extended Grade: -20°C ~ +85°C
