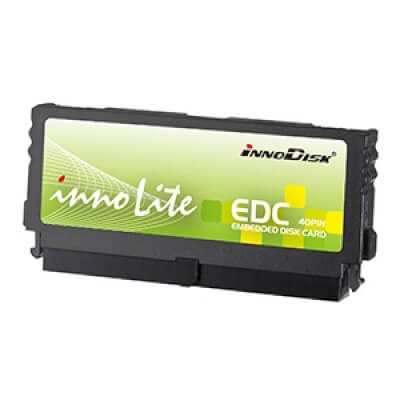

InnoLite EDC

The InnoLite EDC is a low-profile, reliable MLC NAND flash solution that provides high-capacity solid-state flash memory for industrial embedded data storage systems. It complies electrically with the Personal Computer Memory Card International Associatio

PRODUKT JIŽ NENÍ URČEN K PRODEJI

Základní informace

Features:
 •Static wear leveling algorithm
 •Auto error correction code (ECC): 4 bits/ per 512 byte
 •Write protection security
 •Cost-effective lifespan

Benefits:
The Innodisk’s InnoLite EDC offers manufacturers a cost-efficient, high-capacity solid-state flash memory solution for industrial applications.
 •Passed serial comprehensive reliability tests
 •Supports advanced PIO (0-4), Multi Word DMA (0-2), Ultra DMA (0-4) transfer modes, multi-sector transfers, and LBA addressing
 •Features value-added design with low-profile, lightweight form factor

Specifikace

Availability

Model Name InnoLite EDC
Interface SATA II 3.0Gb/s
Type Vertical
Flash Type MLC
Connector 40/44 pin
Capacity 4GB~32GB
Max. Channels 2
Sequential R/W (MB/sec, max.) 40/15
Max. Power consumption 0.75W(5V x 150mA)/0.5W(3.3V x 150mA)
H/W Write Protect Y
ATA Security Y
S.M.A.R.T. Y
Dimension (WxLxH/mm) 40 pin: 60.2 x 27.3 x 6.4
  44 pin: 50.3 x 27.3 x 5.8
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C;
  Extended Grade: -20°C ~ +85°C
