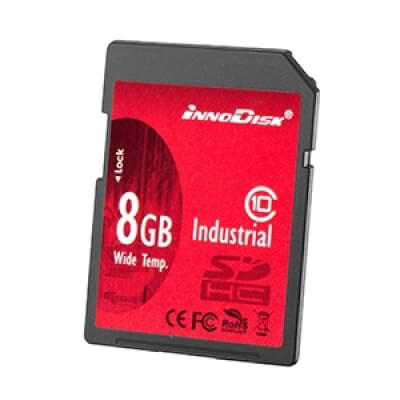

Industrial SD Card
The Innodisk Industrial SD card is a slim, SLC-based storage solution designed for portable devices. With a built-in ECC function, it can help detect and correct errors during data transfer. It is also compatible with SD 1.1 and SD 2.0 standards, and supp
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Základní informace
Features:
•S.M.A.R.T / iSMART disk health monitoring tool
•Intelligent error recovery system
•Excellent data transfer speed
•Static wear-leveling algorithm support
•Enhanced power cycling
Benefits:
The Innodisk Industrial SD Card provides manufacturers with confidence and ease of mind when it comes to performance management.
•Detects and corrects errors automatically during data transfer with built-in ECC function within the card
•Supports standby and sleep mode, effectively reducing power consumption in advance for applications with a limited power source
•Ensures an optimal working condition, including detecting and reporting various indicators, such as erase count, bad block count, ECC reliability, and lifespan, which are monitored through the S.M.A.R.T function
Specifikace
| Model Name | Industrial SD Card |
| Interface | SD 1.01/2.00 |
| Type | Standard |
| Flash Type | SLC/MLC |
| Capacity | SLC: 128MB~16GB MLC: 4GB~32GB |
| Max. Channels | 1 |
| Sequential R/W (MB/sec, max.) | 20/16 |
| Max. Power consumption | 0.2W (3.3V x 60mA) |
| H/W Write Protect | Y |
| S.M.A.R.T. | Y |
| Dimension (WxLxH/mm) | 24.0 x 32.0 x 2.1 |
| Vibration | 5G@7~2000Hz |
| Shock | 50G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature | Standard Grade: 0°C ~ +70°C; |
| Industrial Grade. OP: -40°C ~ +85°C |
Fotogalerie
