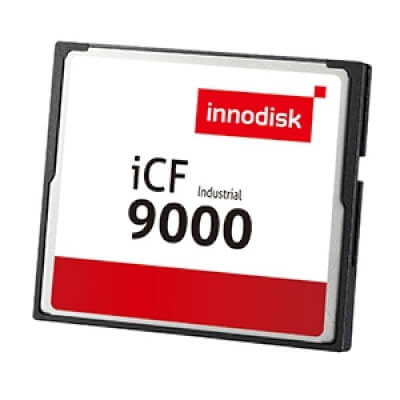

iCF 9000 MLC

The iCF 9000 is a low-profile, high-capacity solid-state flash memory solution designed to replace traditional rotating disk drives. Compliant electrically with True IDE Mode and compatible with IDE disk drives, the iCF 9000 works reliably as an embedded

PRODUKT JIŽ NENÍ URČEN K PRODEJI

Základní informace

Features
​ •Support static wear leveling algorithm
 •S.M.A.R.T. & i-S.M.A.R.T. Supported
 •Intelligent system for error recovery
 •Excellent data transfer speed
 •Enhanced power cycling

Specifikace

Availability

Model Name iCF 9000 MLC
Interface PATA
Type Standard
Flash Type MLC
Connector 50 pin Compact Flash
Capacity 4GB~128GB
Max. Channels 4
Sequential R/W (MB/sec, max.) 100/65
Max. Power consumption 1.05W(5V x 210mA) / 0.69W(3.3V x 210mA)
H/W Write Protect Y
ATA Security Y
S.M.A.R.T. Y
Dimension (WxLxH/mm) 42.8 x 36.4 x 3.3mm
Vibration 5G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C;
  Extended Grade: -20°C ~ +85°C
