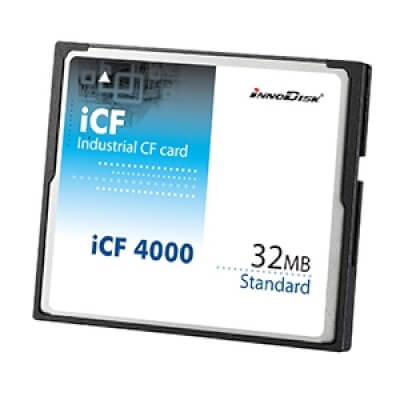

iCF 4000

The iCF 4000 is a low-profile, high-capacity solid-state flash memory solution designed to replace traditional rotating disk drives. Compliant electrically with True IDE Mode and compatible with IDE disk drives, the iCF 4000 works reliably as an embedded

PRODUKT JIŽ NENÍ URČEN K PRODEJI

Základní informace

Features:
 •S.M.A.R.T / iSMART disk health monitoring tool
 •Intelligent error recovery system
 •Anti-vibration mechanical design
 •Write protection security
 •Static wear-leveling algorithm support
 •Enhanced power cycling

Benefits:

The Innodisk iCF 4000 allows manufacturers to replace traditional rotating disk drive with confidence.
 •High-mobility, and easy plug-in and plug-out
 •Supports advanced PIO (0-4), Multiword DMA (0-2), Ultra DMA (0-4) transfer modes, multi-sector transfers, and LBA addressing
 •Compatible with CF Specifications version 3.0, PC Card standard, IDE standard interface, and ATA standard

Specifikace

Availability

Model Name iCF 4000
Interface PATA
Type Standard
Flash Type SLC
Connector 50pin CF connector
Capacity 1GB~32GB
Max. Channels 2
Sequential R/W (MB/sec, max.) 40/25
Max. Power consumption 0.75W(5V x 150mA)/0.5W(3.3V x 150mA)
H/W Write Protect Y
ATA Security Y
S.M.A.R.T. Y
Dimension (WxLxH/mm) 42.8 x 36.4 x 3.3
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C;
  Industrial Grade. OP: -40°C ~ +85°C
