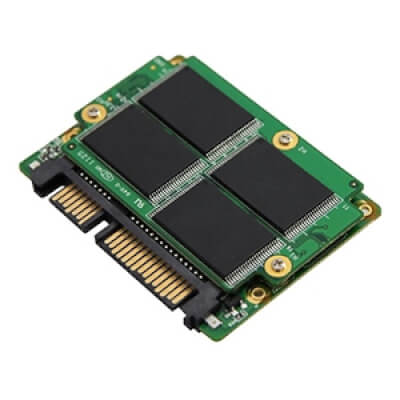

EverGreen SATA Slim

With L2 wear leveling architecture, the EverGreen SATA Slim has significantly improved the SSD random data transfer rate and lifespan for data file sizes equal to or smaller than 128KB, in particular. Compliant with JEDEC MO-297 and Serial ATA (SATA) sta

PRODUKT JIŽ NENÍ URČEN K PRODEJI

Základní informace



Features:
​ •High IOPS
 •S.M.A.R.T / iSMART disk health monitoring tool
 •Excellent data transfer speed
 •MLC-based flash with L2 architecture
 •Lifespan 10 times longer than an MLC solution

Benefits:
The Innodisk EverGreen SATA Slim provides manufacturers with a cost-effective MLC flash replacement for hard disk drives (HDDs).
 •Delivers longer life and better performance than current MLC flash IC based SSD solutions
 •Improves SSD random data transfer rate and lifespan, particularly for data file sizes equal to or smaller than 128 KB
 •Reduces operation system boot time
 •Consumes less power than an HDD

Specifikace

Availability

Model Name EverGreen SATA Slim
Interface SATA II 3.0Gb/s
Type Standard
Flash Type MLC
Connector 7pin+15pin
Capacity 32GB~128GB
Max. Channels 8
Sequential R/W (MB/sec, max.) 220/150
Max. Power consumption 2.5W (5V x 500mA)
Thermal Sensor N
External DRAM Buffer Y
H/W Write Protect N
ATA Security Y
S.M.A.R.T. Y
Conformal Coating N
Dimension (WxLxH/mm) 54.0 x 39.8 x 6.8
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C;
  Extended Grade: -20°C ~ +85°C
