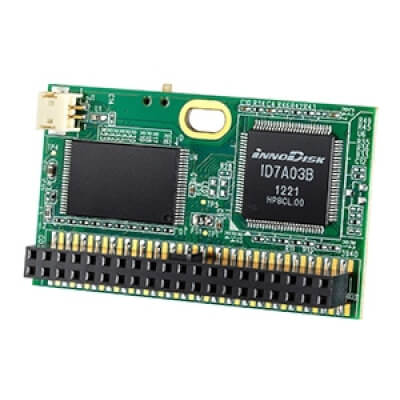

EDC 4000 Horizontal Type
Innodisk’s horizontal EDC 4000 fits into any platform with an IDE connector and provides a simple, fast path upgrade.
Základní informace
- Support static wear leveling algorithm
- S.M.A.R.T. & i-S.M.A.R.T. Supported
- Intelligent system for error recovery
- High reliability & compatibility
- Mechanical design for anti-vibration
- Enhanced power cycling
Innodisk’s horizontal EDC 4000 fits into any platform with an IDE connector and provides a simple, fast path upgrade. Designed for industrial embedded applications that require a speedy booting process, the EDC 4000 upgrades the working environment efficiently and enhances data transfer rates with read and write performances of up to 40MB and 20MB per second respectively. The horizontal EDC 4000 comes in capacities ranging from 128MB to 8GB and is available in 40-pin and 44-pin horizontal connector packages.
Specifikace
| Model Name | EDC 4000 Horizontal |
| Interface | PATA |
| Flash Type | SLC |
| Type | Horizontal |
| Capacity | 128MB~8GB |
| Max. Channels | 2 |
| Sequential R/W (MB/sec, max.) | 40/28 |
| Max. Power Consumption | 3.3V/5V |
| H/W Write Protect | N |
| ATA Security | Y |
| S.M.A.R.T. | Y |
| Dimension (WxLxH/mm) | 40pin 55x 32.4x H mm (H: A =12.8, B=9, C=11.9, D=14.6, E=18.2, F=18.2) 44pin 48x 32.6x H mm (H: A=7, B=7.2, C=10, D=9.9, E=12.9, F=12.9) |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature | Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
