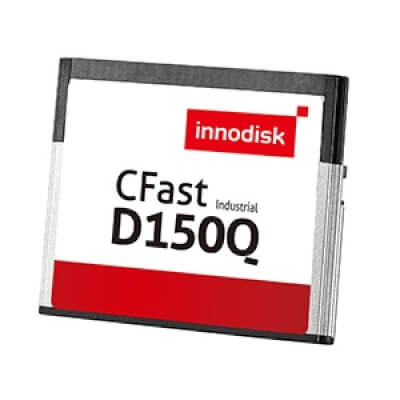

CFast D150Q

The Innodisk CFast D150Q storage card is designed to work in harsh environments and to reduce operation system booting time. With a 7+17pin connector design, it consumes less power than a traditional HDD. It is also compliant with the CFast 1.0 standard a

PRODUKT JIŽ NENÍ URČEN K PRODEJI

Základní informace

Features:
 •S.M.A.R.T / iSMART disk health monitoring tool
 •Intelligent error recovery system
 •Excellent data transfer speed
 •Write protection security
 •Static wear-leveling algorithm
 •Built-in thermal sensor

Benefits:
The Innodisk CFast D150Q provides manufacturers with an effective hard disk drive (HDD) replacement.
 •Performs better than a CF Card
 •Supports SATA II and SATA I

Specifikace

Availability

Model Name CFast D150Q
Interface SATA II 3.0Gb/s
Type Standard
Flash Type SLC
Connector 7pin+17pin
Capacity 2~32GB
Max. Channels 4
Sequential R/W (MB/sec, max.) 130/119
Max. Power consumption 0.76W (3.3V x 230mA)
Thermal Sensor Y
H/W Write Protect N
Dimension (WxLxH/mm) 42.8 x 36.4 x3.6
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C;
  Industrial Grade. OP: -40°C ~ +85°C
