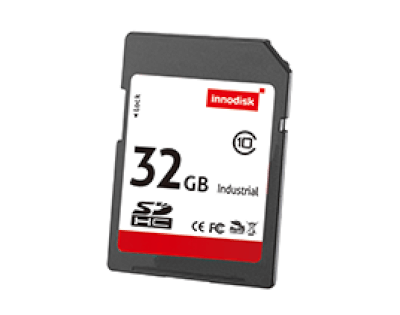

Industrial SD Card SD 3.0 (SLC)

Innodisk industrial SD card 3.0 series are specifically designed for industrial PC and embedded applications.

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • SD 3.0 interface
  • Power fail management
  • Redundant firmware
  • Flexible ECC engine
  • Dynamic Data refresh
  • Customizable

Innodisk industrial SD card 3.0 series are specifically designed for industrial PC and embedded applications. The 3.0 series SD card has latest firmware architecture and Flash algorithms, including superior wear leveling, read disturb management, and power fail management ensuring highest reliability and endurance.

Innodisk industrial SD card 3.0 series provide wide range capacities from 128MB to 32GB within SLC NAND Flash, and 4GB to 64GB within MLC NAND Flash, and fully compliant to SD3.0, and SD2.0 specifications.

With its low power consumption and features above, Innodisk industrial SD card 3.0 series can be applied on industrial automation, SBC (single-board computer), medical equipment, infotainment, and mobile application.

Specifikace

Model Name Industrial SD Card SD 3.0 (SLC)
Interface SD 3.0
Flash Type SLC
Capacity 128MB~32GB
Max. Channels 1
Sequential R/W (MB/sec, max.) 40/33
Max. Power Consumption 0.3W (3.3V x 93mA )
ATA Security N
S.M.A.R.T. N
Dimension (WxLxH/mm) 24 x 32.0 x 2.1
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C;
Industrial Grade: -40°C ~ +85°C
