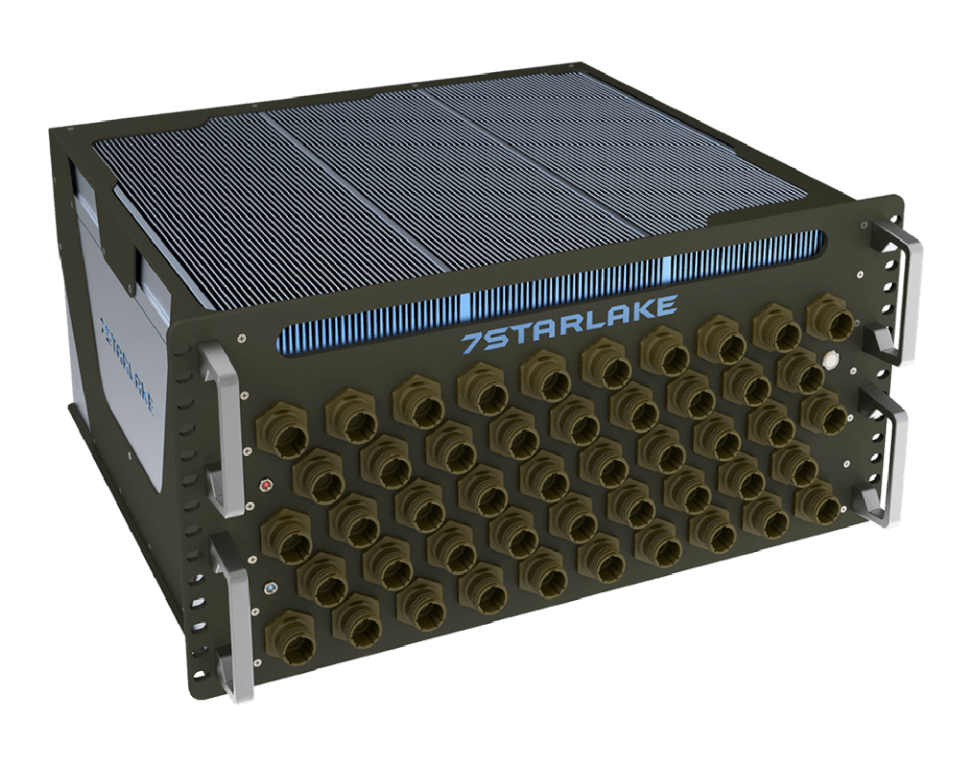

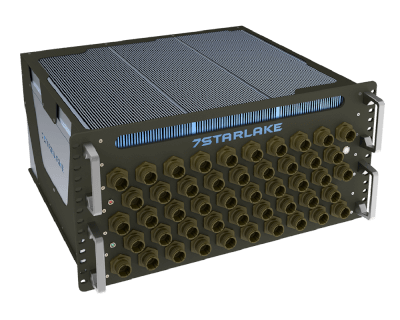

40 x 25G s 8 x100G ethernet switch

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • 2.0T Layer 2 & Layer 3 Programmable Switch with 40 Ports 25G
  • Supports multicast, cut-through, and store-and-forward with best-in-class cut-through latency.
  • Large table resources with flexible allocation across L2, IPv4 and IPv6
  • Extensive tunneling capabilities such as IP-in-IP, GRE, MPLS, VXLAN and Geneve.
  • Advanced QoS/traffic management feature set such as DCB, RoCE v2
  • IEEE 1588 v2 timing synchronization required in 5G and other service provider infrastructure
  • Fully SW and architecture compatibility with Hot-swappable, load-sharing, redundant 48V DC or 24V DC PSUs
  • Open Ethernet available with ONIE and SONiC


System Power (min/max) 330W / 520W
System Operating Temperature range 0°C ~ +40°C
System Latency   450ns
Data plane ports (form factor/quantity) SFP+/40, QSFP28/8
Data plane port config/modes supported 100/40/25/10
Connectors MIL-DTL-38999
OOB port 1/RJ45
Console 1/RJ45 Form Factor
USB I/F 1/Type A
BMC Port Optional (Share with OOB)
LEDs (System, Port, etc.) System, Diag mode, OOB Link, Per PSU connected, Per Port link speed
PS Redundant (Y/N)/Quantity Dual redundant MIL-STD-461
PS Input (AC/DC) DC to DC
PS Input Voltage    36V-72V (48V) )or 18V-36V(24V)
PS Hot Swappable Option
OCP Compliance YES
ONIE support with version ONIE-2019.05 and Upper
SONiC 201811 and upper
BMC support (Yes/No) Yes (Optional)
BMC vender/family/model ASPEED/AST2520
Rack-Mountable Width 19 inch
Dimension(W x D x H) 440 x 580 x132mm
Weight 18kg
