HD-30/2
The HD-30/2 is a 30” WQXGA high resolution, wide-screen rugged display.
Základní informace
- Long life
- Multi-Touch
- Fast response time
- Wide viewing angles
- Fully MIL-qualified
ScioTeq's HD-30/2 is a wide-screen rugged display that is ideal for use inside mobile shelter or naval environments. The HD-30/2 delivers bright and crisp

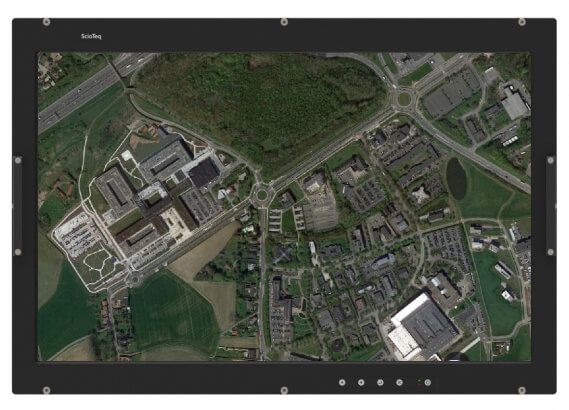

graphics and video and allows you to perform accurate mission planning and present digital maps in their native resolution. The HD-30/2 uses highly accurate Infrared technology to support dual touch gestures (zoom, rotate...) and allows interaction with finger tips, gloves or stylus.
The new generation features power-efficient LED backlights, highly accurate Infrared technology and ultra-fast image rendering. Its energy efficient LED backlight produce less heat and ensure minimal power consumption while the fan-less and fully sealed (IP64) design ensures noiseless operation to improve operator comfort.
Designed for use in mission-critical environments
With its fast LCD response time (ca. 12 ms), the HD-30/2 renders fast moving images with vivid accuracy. The wide viewing angle (178°) offers optimum viewing comfort when multiple viewers are involved. ScioTeq's HD-30/2 display is fully MIL-qualified in terms of vibration, shock and EMI/EMC, so it easily withstands the harsh environmental conditions of a typical mobile shelter or naval environment.
Specifikace
| Panel type | Active Matrix LCD |
| Panel active area | 30 inch diagonal |
| Resolution | 2560 x 1600 (WQXGA) |
| Backlight | LED |
| Dimming ratio | 100:1 |
| Contrast ratio | 1000:1 |
| Brightness | 250 cd/m² (73fL) typical |
| Viewing angle | ± 89° horizontal and vertical |
| Touch screen | Infrared multi-touch |
| Signal Inputs | 2560x1600x60Hz dual link DVI (MIL-C-38999 serie III) |
| USB | MIL-C-38999 series III |
| Vibration | MIL-STD-810F Meth 514.5, Notice 3, Proc 1 |
| Functional Shock | MIL-STD-810F Meth. 516.5, Proc I |
| Operational Temperature | MIL-STD-810F Meth 501.4 , Proc. II Meth. 502.4 , Proc. II High temp.: +49°C (120.2°F) - Low temp.: -32° C (-25.6°F) |
| Storage Temperature | MIL-STD-810F Meth 501.4, Proc. I Meth. 502.4, Proc. I High temp.: + 71°C (159.8°F) - Low temp.: -45° C (-47°F) |
| Relative Humidity | max 95% |
| Enclosure | IP64 |
| Altitude | Operating: 3500 m (11500 ft) - Non-Operating: 12000 m (40000 ft) |
| EMI / EMC | MIL-STD-461E |
| Controls | UP / DOWN / SEL / QUIT / STANDBY in conjunction with OSD |
| Indicators | Green ‘Power’ LED, Red ‘Fault’ LED |
| OSD | On Screen Display |
| Power | 28 VDC |
| Power consumption | 85W typical |
| Weight | 17.5 kg (38.7 lbs) |
| Cooling | Passive |
| Finishing | Bezel color Black RAL9005 |
| Approvals and compliance | European CE: EN60950-1; EU RoHS, EU REACH |

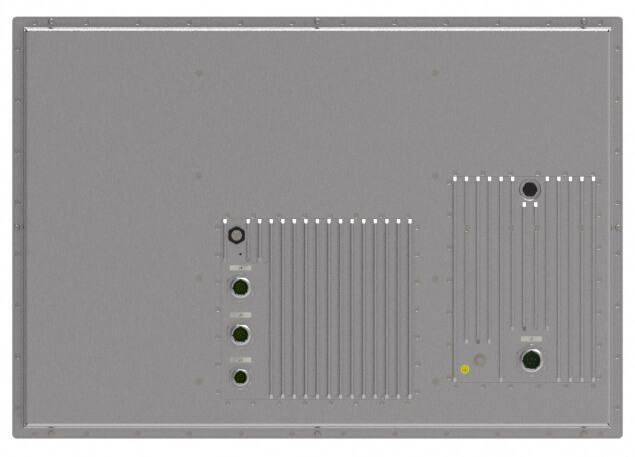

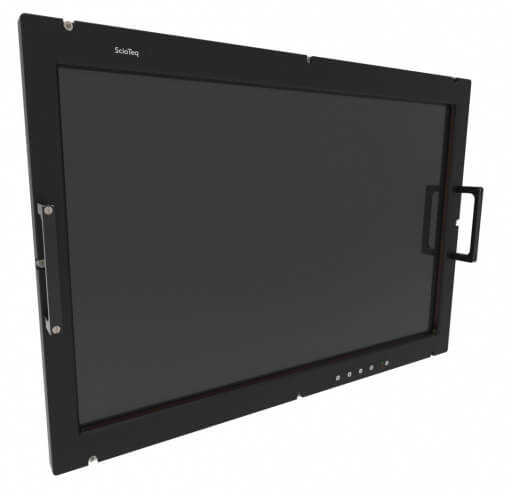

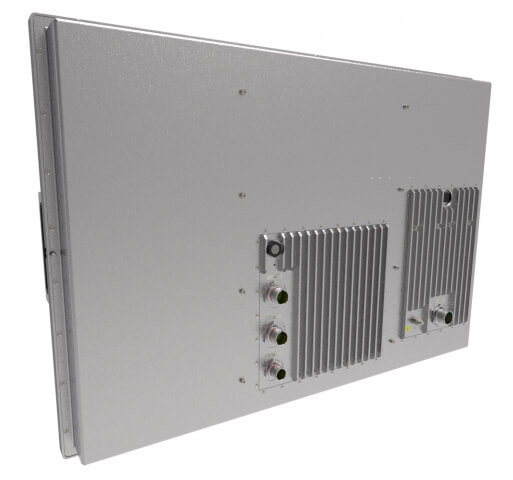

Fotogalerie
