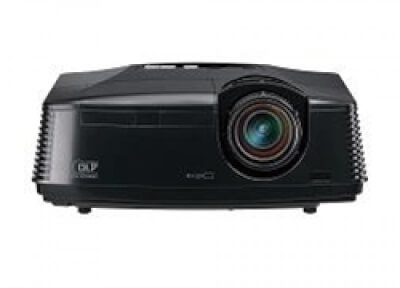

HC3800
Projektor HC3800 představuje základní model pro kino doma s plným HD rozlišením. Vyniká dobrou obrazovou kvalitou za velmi příznivou cenu.
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Detail
Specifications:
| Projection System | DLP™ system |
| Panel Specs | Panel Size | 0.65" DMD, Aspect ratio 16:9 |
 |
Number of Pixels | 1920 × 1080 |
|
Drive System | DMD reflection system |
|
Array | Stripe pattern |
| Optical Specs | Lens |
Zoom/focus operation | 1.5-zoom / manual operation | |
|
f(mm) | 20.6-30.1 | ||
|
Light Source Lamp | 230W (at standard mode), 190W (at low mode) | ||
|
Optical System | Time-division color separation / composition system | ||
| Color wheel | 6 segment (RGB RGB) × 4 | |||
| Projection Screen Size (inches) | 50-300 | |||
| Images | Brightness (lm) | 1300 | |
|
Contrast Ratio | 3.300:1 | |
|
|||
|
Resolution | PC input | VGA 640 × 480 - UXGA 1920 × 1080 |
|
Scan |
Horizontal (kHz) | 15-80 |
| Vertical (Hz) | 50-85 | ||
| Input Signal System | Video | NTSC, NTSC4.43, PAL (including PAL-M and N), SECAM, PAL-60 Video input: 480i/p, 576i/p, 1080i 60/50, 1080p 60/50/24, 720p 60/50 |
|
PC | PC/AT compatibles, Mac, PC98 |
| Input | |
|
Video | PC input | Mini D-Sub 15 pin | 1 terminal |
|
|
HDMI input | HDMI Terminal | 1 terminal (Ver.1.3) |
|
|
Composites | RCA Terminal | 1 terminal |
|
|
S | S-Video Terminal | 1 terminal |
|
|
Components | RCA Terminal | 1 terminal (component can be also input to Mini D-Sub 15 pin) |
|
Serial / RS-232C Standard | 1 terminal (Mini DIN 8 pin) | ||
| Functions | Gamma Mode | 3 patterns + 2 users | |
| Digital Keystone (Vertical) | +/-15steps | ||
|
Power Source Voltage | AC100-240V 50/60Hz | |
|
Power Consumption (W) | 340 (at standby 0.5W) | |
|
Weight (kg / lbs) | 3.5 / 7.7 | |
|
Main Unit Dimensions | W × D × H | 345 × 129 × 270mm / 13.6" × 5.1 × 10.6" (excluding height adjustment) |
| Other | Supplied Accessories | Power source cord (1.8m), Remote control, AA batteries (×2), RGB signal cable, Lens cap, Lamp replacement attachment |
- *All brand and product names are trademarks or registered trademarks of their respective companies.
