FS8

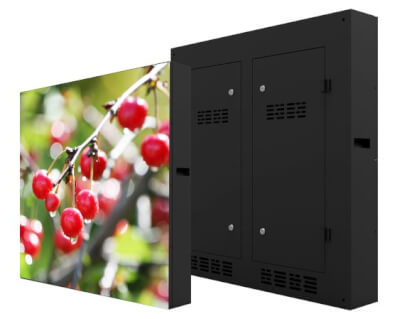

Venkovní SMD LED obrazovka je určená pro venkovní aplikace.
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Základní informace
Rozteč bodů: 8 mm
Rozměry panelu: 960 x 960
Svítivost (nits): 5 500
Hmotnost: 45 kg
Specifikace
|
Item
|
Value
|
|
| Pixel Pitch(mm) |
8
|
|
| Pixel Density(pixels/㎡) |
15625
|
|
| Pixel Configuration |
SMD
|
|
| Viewing Angle(deg.) |
160(Horizontal), 160(Vertical)
|
|
| Brightness(nits) |
≥5500
|
≥6500
|
| Grey Level(bit) |
12/14/16
|
|
| Refresh Rate(Hz) |
1920/2880/3840
|
|
| Panel Size(mm) |
960(W)×960(H)×130(D)
|
1024(W)×1024(H)×130(D)
|
| Panel Size(inch) |
37.80(W)×37.80(H)×5.1(D)
|
40.3(W)×40.3(H)×5.1(D)
|
| Panel Resolution(pixels) |
120×120
|
128×128
|
| Panel Material |
Aluminum/Iron
|
|
| Weight(kg/㎡) |
≤45/≤55
|
|
| Module Size(mm) |
240(W)×240(H)
|
256(W)×256(H)
|
| Module Size(inch) |
9.45(W)×9.45(H)
|
10.08(W)×10.08(H)
|
| Module Resolution(pixels) |
30×30
|
32×32
|
| Protection Grade(Front/Rear) |
IP65/IP54
|
|
| Serviceability |
Front/Rear
|
|
| Voltage(V) |
AC 100~AC 240
|
|
| Avg.Power Consumption(W/㎡) |
153（AC）
|
|
| Max.Power Consumption(W/㎡) |
610（AC）
|
|
| Operating Temp/Humidity(℃/%RH) |
-20~50/10~90
|
|
| Storage Temp/Humidity(℃/%RH) |
-40~60/0~90
|
|
| Lifetime(Normal Temp)(hours) |
100000
|
|
| Compliant Standard |
CE FCC RoHS
|
|
